035-3360
1.98mm Thick External Retainer Ring
External snap ring for 60.33 mm shafts in planetary drives.
Description

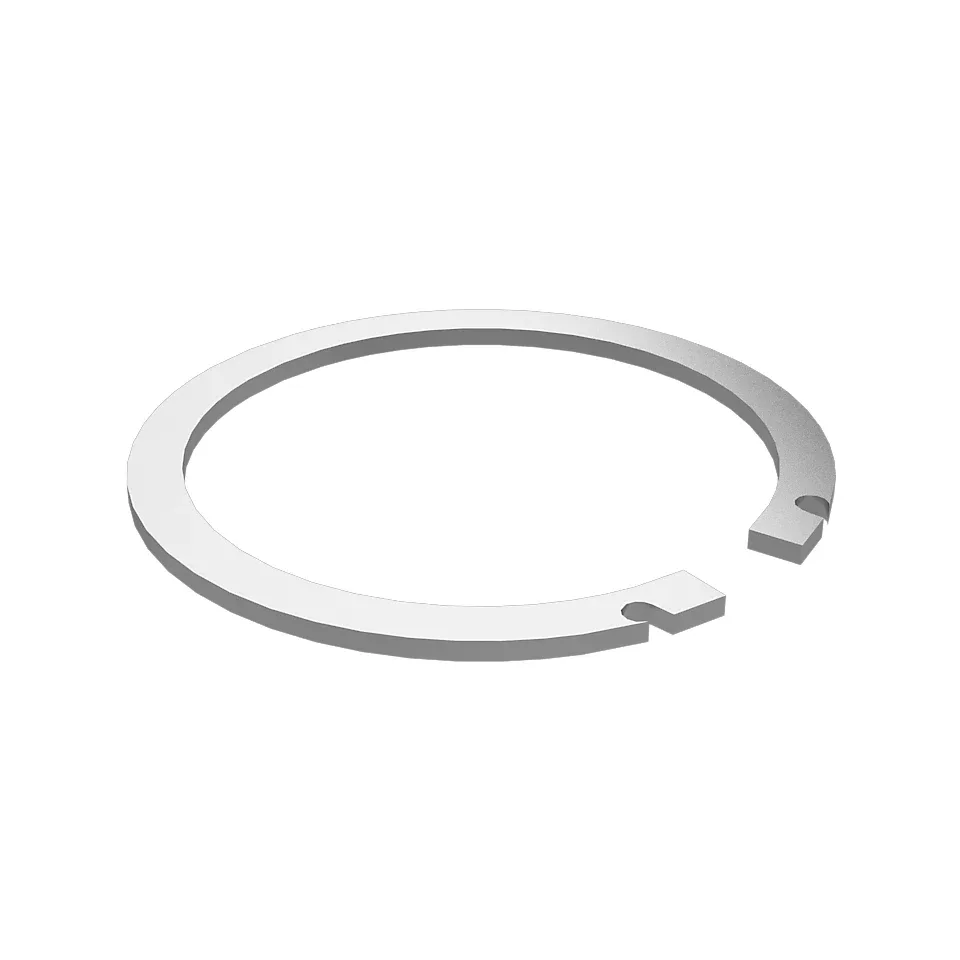

Seated directly into turned shaft grooves, this spring steel circlip locks planetary gears and spacer washers in place axially. Snaps tight into a 60.33 mm shaft recess to keep internal transmission components from walking along the spline under…
Overview
Seated directly into turned shaft grooves, this spring steel circlip locks planetary gears and spacer washers in place axially. Snaps tight into a 60.33 mm shaft recess to keep internal transmission components from walking along the spline under shock loads. Standard external snap ring pliers make quick work of installation and removal.
Features
| Shaft diameter | 60.33 mm (2.38 in) |
|---|---|
| Free inside diameter | 56.36 mm (2.22 in) |
| Ring thickness | 1.98 mm |
| Material | Spring steel |
| Style | External axial retaining clip |
Specifications
| Brand | Caterpillar |
|---|
