FRAME

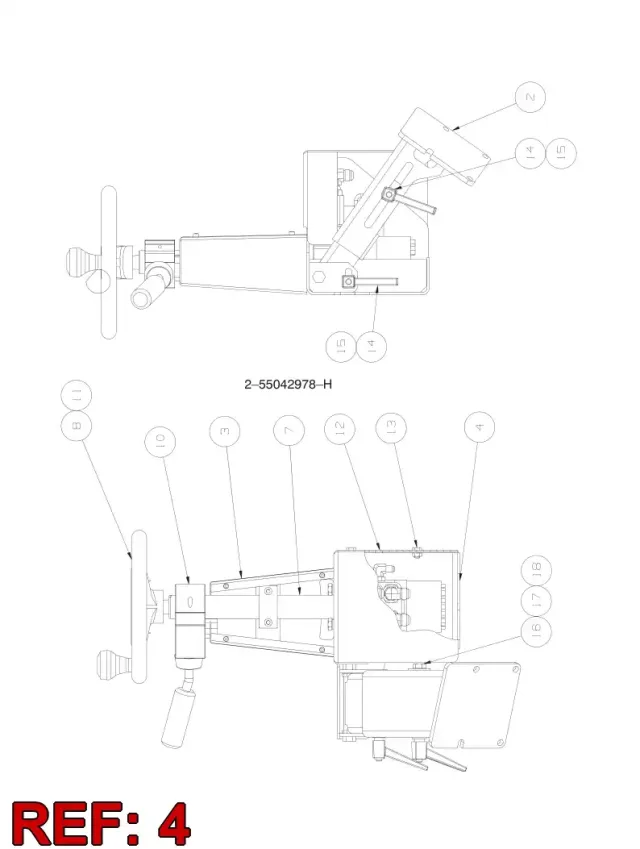

152 753 98 FRAME A FRAME component like this serves as the backbone for various modules within a rock drilling rig. It provides the rigid structure necessary to hold heavy components in their precise positions, whether it's supporting a drifter, a feed beam, or other critical assemblies. Maintaining proper alignment of drilling components is crucial for efficient energy transfer and accurate hole placement. Without a solid foundation, the entire drilling process can become unstable and less effective.

The structural integrity of a FRAME directly impacts the overall reliability and safety of the drilling operation. A compromised FRAME can lead to misalignment, increased wear on related parts, and even catastrophic failure of major components. For instance, if a FRAME supporting the drifter or feed system is bent or cracked, it can cause excessive vibration, reduce impact energy transmission, and accelerate wear on internal drifter components or feed rails. This directly affects drilling speed and tool life.

Regular visual inspections are key to identifying potential issues with structural frames. Look for signs of cracks, bending, deformation, or loose fasteners, especially in high-stress areas. Any significant damage to a FRAME compromises its ability to support loads and maintain alignment, making timely replacement essential. Operating with a damaged FRAME can lead to more extensive and costly repairs down the line, so address structural issues promptly.
