CYLINDER

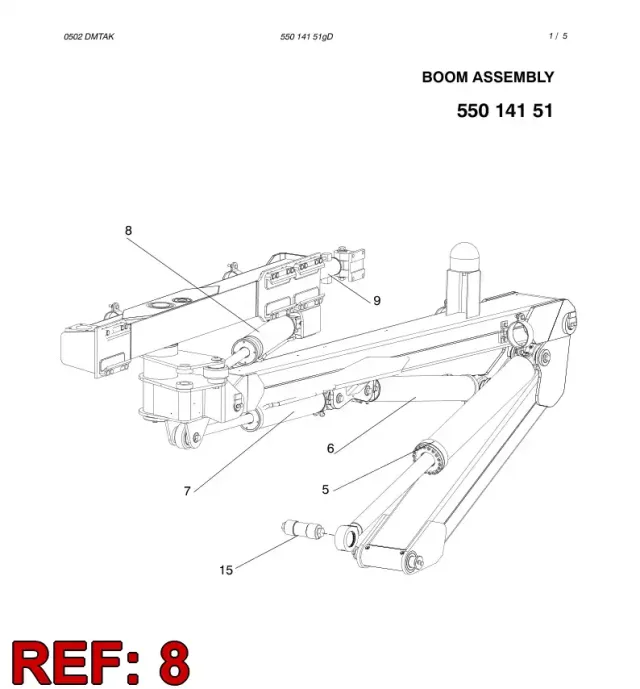

237 344 08 CYLINDER A CYLINDER is a fundamental component in any hydraulic or pneumatic system on an underground drilling rig. It converts the pressure from hydraulic fluid or compressed air into a powerful, controlled linear push or pull. These components are often found in the feed system, where they advance and retract the drifter along the feed beam, or in the boom linkage, enabling precise positioning of the drill string. Their reliable function is key to the machine's overall movement and operational accuracy.

The performance of a drilling rig relies heavily on its cylinders. A properly functioning CYLINDER ensures consistent feed force, which directly impacts penetration rates and overall drilling efficiency. If a CYLINDER starts to leak internally or externally, it can lead to a loss of power, causing jerky movements or an inability to hold a position, which compromises both safety and drilling accuracy. For instance, a weak feed CYLINDER might struggle to maintain consistent pressure against the rock face, leading to slower progress and increased wear on drill bits.

Common signs of a failing CYLINDER include external oil leaks around the rod seals, slow or erratic movement, or a noticeable loss of power. You might also observe the boom or feed drifting out of position when hydraulic pressure is applied. Regular visual inspections for leaks and rod damage are crucial. When a CYLINDER shows these symptoms, it typically needs to be serviced or replaced. Addressing these issues promptly prevents further damage to the system and maintains safe, efficient drilling operations.
