DRILL CARRIAGE

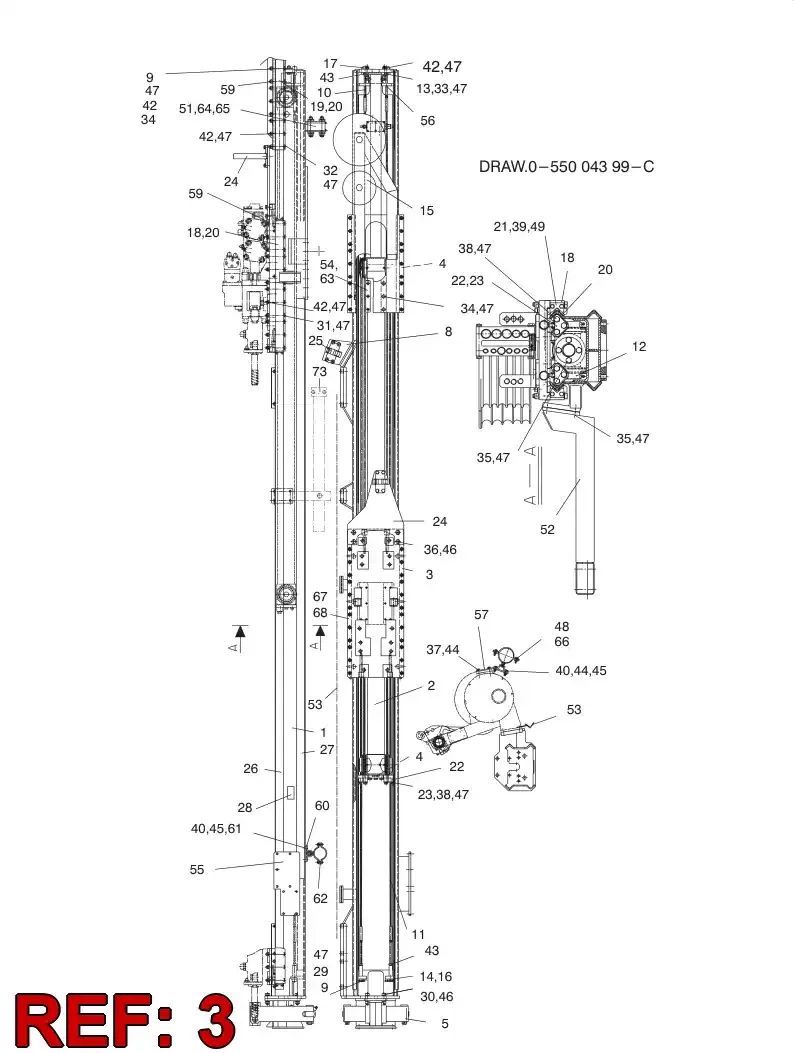

303 822 58 DRILL CARRIAGE The main function of this assembly is to support and guide the drifter along the feed beam. It acts as a mobile platform, carrying the drifter and enabling its precise linear advancement into the rock face. Typically located on the feed beam, which is mounted on the drill boom, it facilitates the controlled application of feed force during the drilling cycle, ensuring the drill bit engages the rock effectively.

Proper function of the DRILL CARRIAGE directly influences drilling performance and overall machine reliability. A well-maintained carriage ensures smooth, stable movement, which is crucial for achieving optimal penetration rates and maintaining hole straightness. If the carriage experiences excessive play or binding, it can lead to uneven feed pressure, premature wear on the drill string and drifter components, and reduced drilling efficiency. For instance, if the guide shoes or rollers are worn, the drifter might wobble, causing the drill bit to wander and potentially increasing bit consumption.

Operators and maintenance teams should regularly inspect the carriage for signs of wear, such as worn guide surfaces, damaged rollers, or unusual play. Listen for grinding or squeaking noises during operation, which often indicate a need for attention. Keeping the feed beam clean and ensuring proper lubrication of all moving parts on the carriage are simple steps to extend its service life. Replacing worn components promptly helps prevent further damage to the feed system and ensures the drill rig continues to operate safely and productively.
