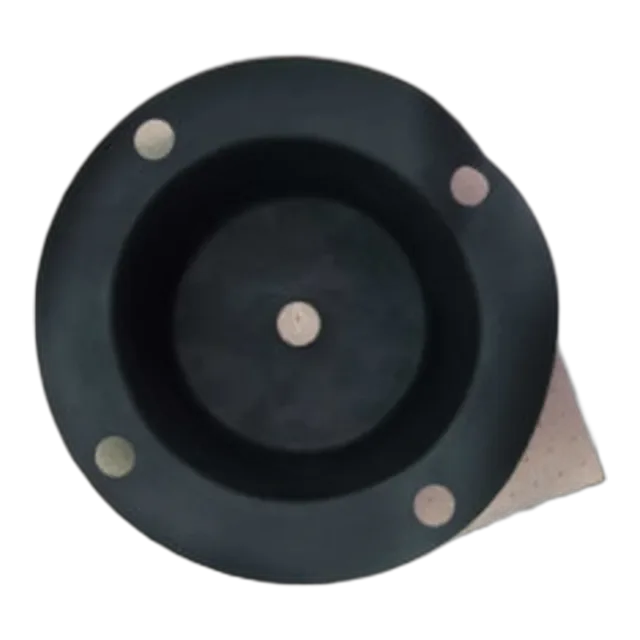

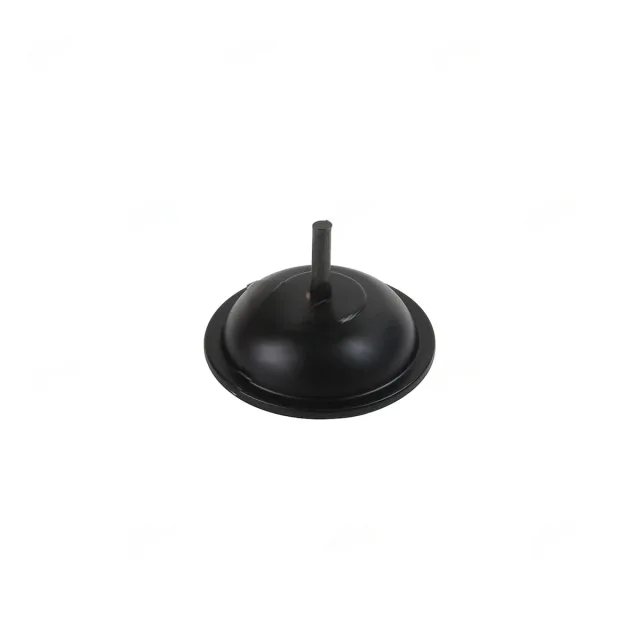

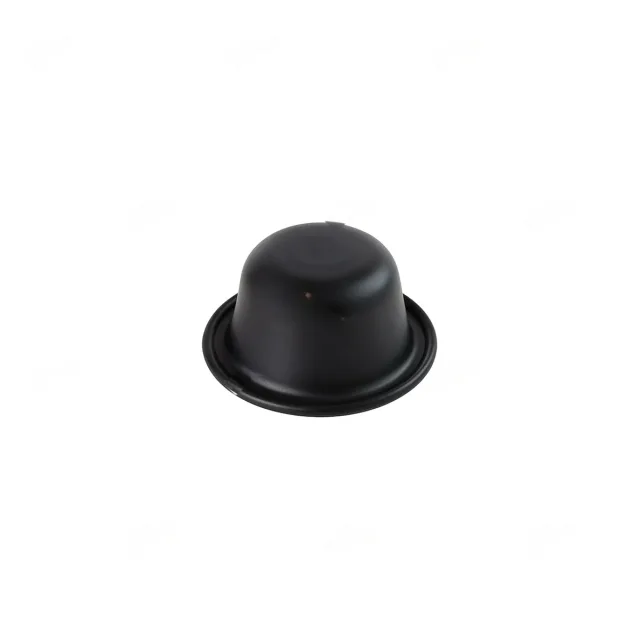

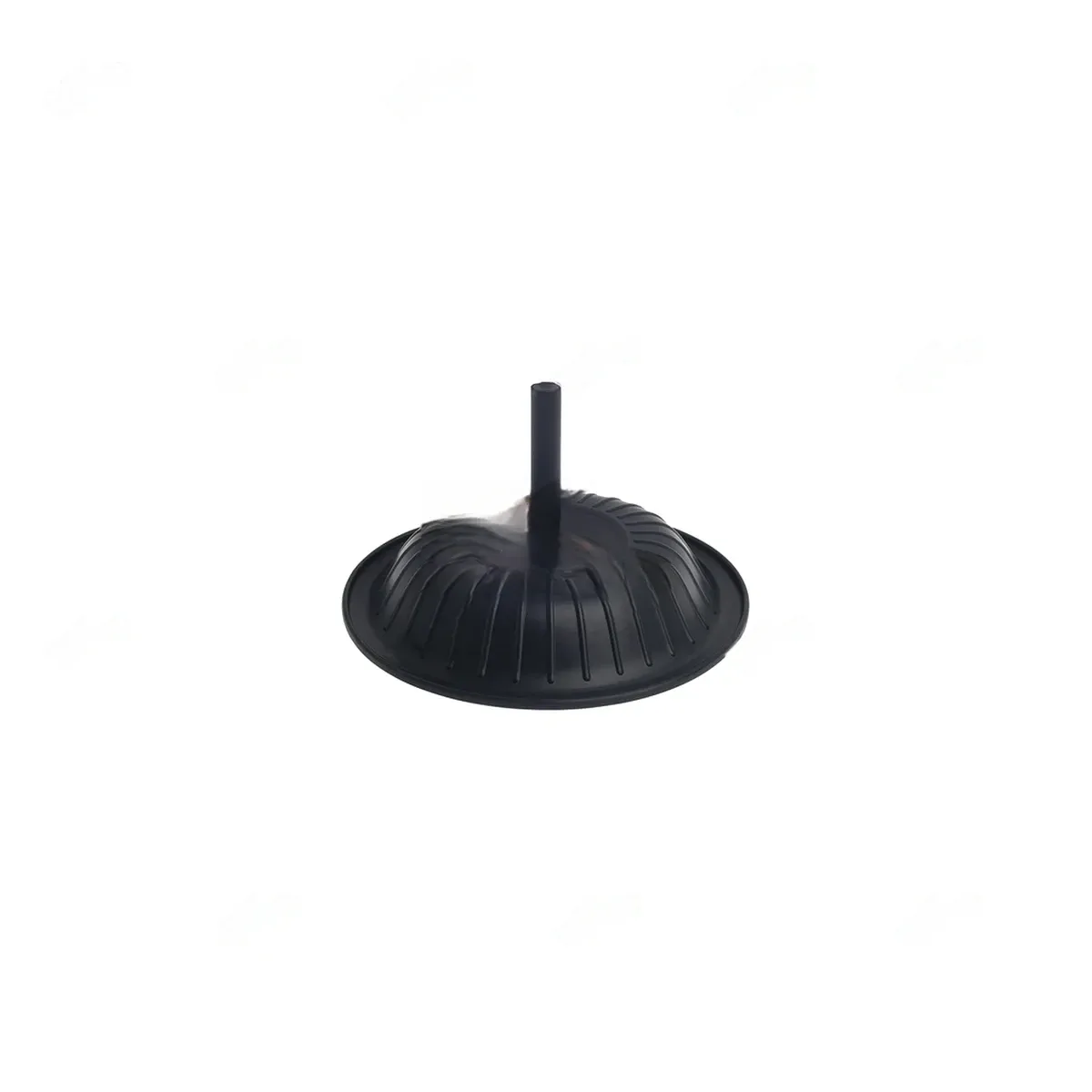

DIAPHRAGM 3115 1822 01 A diaphragm is a flexible membrane that plays a vital role in many hydraulic and pneumatic systems on a drilling rig. Often, it's found inside an accumulator, separating the pre-charged gas (like nitrogen) from the hydraulic oil. This separation allows the accumulator to store energy, absorb pressure spikes, and maintain a consistent flow, which is especially important for the impact mechanism of a drifter.

Maintaining the integrity of this flexible barrier is key for overall system health. When a diaphragm is in good condition, it ensures the hydraulic system operates smoothly, contributing to consistent rock penetration and reduced stress on other components. A compromised diaphragm can lead to significant issues, such as a loss of impact energy in the drifter, erratic pressure readings, and even premature wear on pumps and valves due to uncontrolled pressure fluctuations.

Typical signs of a failing diaphragm include a noticeable drop in drilling power, increased vibration, or the need for frequent re-charging of the accumulator gas side. Sometimes, you might find oil where only gas should be, indicating a rupture. Regular inspection of accumulator pre-charge and replacing the diaphragm as part of a planned service, or immediately when symptoms appear, helps prevent costly downtime and ensures the drilling rig performs as expected.
