MANDREL

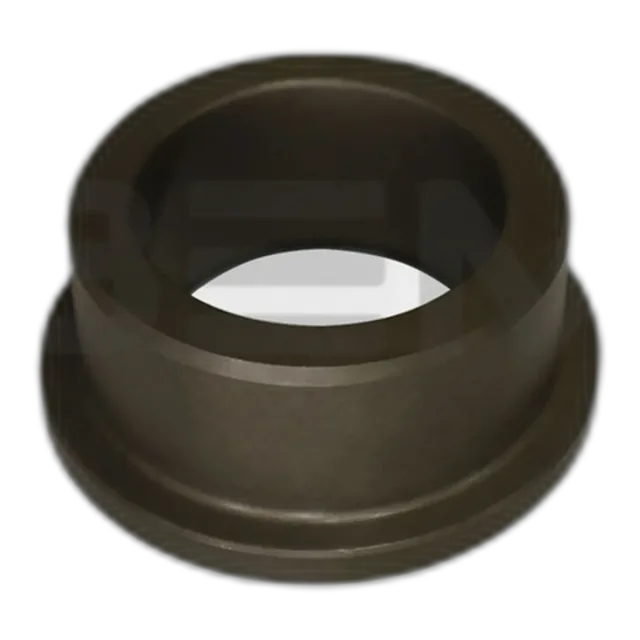

MANDREL 3115 2737 00 this thing usually sits deep inside the rotation unit or sometimes in a specific hydraulic cylinder, acting like a central guide. It's not about making things spin directly, but more about keeping everything else lined up and moving true. Think of it as the backbone for other components, making sure the piston or the splined shaft doesn't wobble or bind up as it does its job.

When this mandrel starts to go, you'll usually notice things getting a bit sloppy. If it's in a rotation unit, you might hear a new kind of grinding or a subtle knocking sound that wasn't there before, especially under load. Or, if it's in a feed cylinder, the whole feed movement might feel a bit jerky or inconsistent, like it's catching. It’s because the internal clearances open up, and parts that should be held tight start to move around more than they should, causing premature wear on other, more expensive components too.

Look, when you're replacing one of these, don't just yank it out and slap a new one in. Always take a good look at the surrounding bores or the components that ride on it – like the piston or bushings. If they're scored or worn too, you're just setting yourself up for another failure down the road. And for crying out loud, make sure you properly lubricate it during assembly; a dry start can ruin a new part faster than anything.
