GUIDE

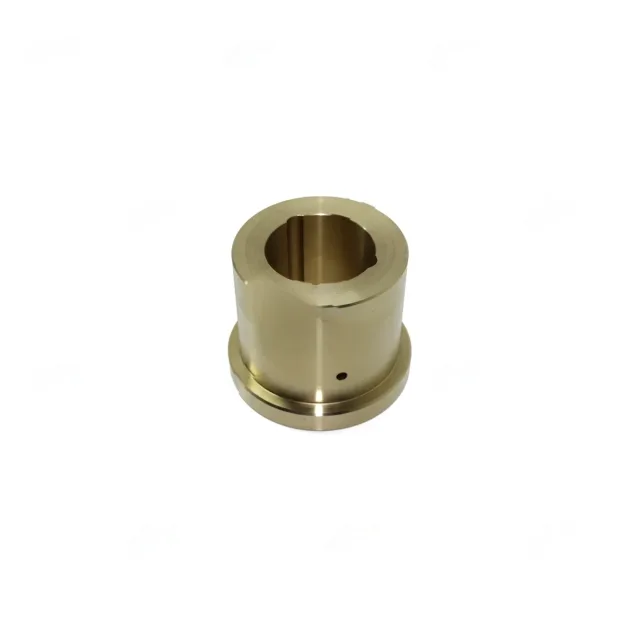

GUIDE 3115 5234 00 A guide plays an essential role in the feed system of a rock drill, ensuring that the drifter or drill string moves precisely along its intended path. It provides crucial support, preventing unwanted sideways movement and absorbing forces that could otherwise lead to premature wear on other components. Maintaining proper alignment is key for efficient drilling, and a well-functioning guide helps deliver consistent impact energy to the rock face.

When a guide starts to wear, several issues can arise. You might notice increased play or looseness in the drifter carriage, leading to less accurate drilling and potentially crooked holes. This misalignment can also cause excessive friction and stress on the feed motor and other moving parts, reducing their lifespan. Over time, a worn guide can significantly decrease drilling penetration rates and increase operational costs due to secondary component failures.

Regular inspection of guides is crucial to catch wear early. Look for visible signs of abrasion, cracks, or deformation on the guide surface and its mounting points. If the drifter or drill string shows excessive wobble or binds during operation, it's a strong indicator that the guide needs attention. Replacing a worn guide promptly helps restore drilling accuracy and protects more expensive components from damage, ensuring your rig operates safely and efficiently.
