LIMIT SWITCH

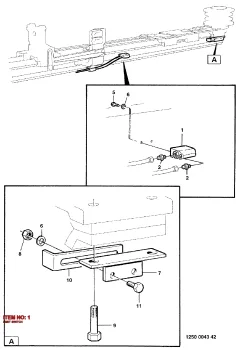

LIMIT SWITCH 3128 3061 83 is what tells the rig's brain exactly where a moving component is at any given moment. Think of it as a simple tripwire for the hydraulics or electrics. When a feed cylinder reaches its full extension, or a boom swings into position, this little guy gets tripped, sending a signal back to the control system. It's fundamental for sequencing operations, making sure one action completes before the next one starts, and preventing mechanical overtravel that can really mess things up. It's not fancy, but it's absolutely critical for the machine to know its own limits.

When one of these starts acting up, you'll usually notice some pretty erratic behavior in whatever system it's monitoring. Maybe the drill feed won't retract fully, or it'll try to push past its mechanical stop, causing the pressure relief to kick in. Or, you might see the boom drift a bit further than it should before the system finally registers its position, leading to a noticeable jerk. Sometimes, it's just intermittent, working fine for a while then completely missing a signal, which can leave the rig sitting there, waiting for a command that never registers. That’s when you start chasing electrical issues, and it often comes back to a faulty switch or its wiring.

Swapping one of these out isn't usually a huge job, but getting it right is key. When you're putting in a new one, don't just bolt it on and walk away. Always take a moment to check the mounting bracket for any bends or cracks; they take a beating. And for crying out loud, make sure the wiring connections are clean and tight. A loose wire or a corroded terminal is a classic culprit that gets overlooked when everyone's focused on the switch itself. Also, confirm the physical adjustment is spot-on. A millimeter off can throw off your whole sequence, leading to bigger headaches down the line.
