LEVEL SWITCH

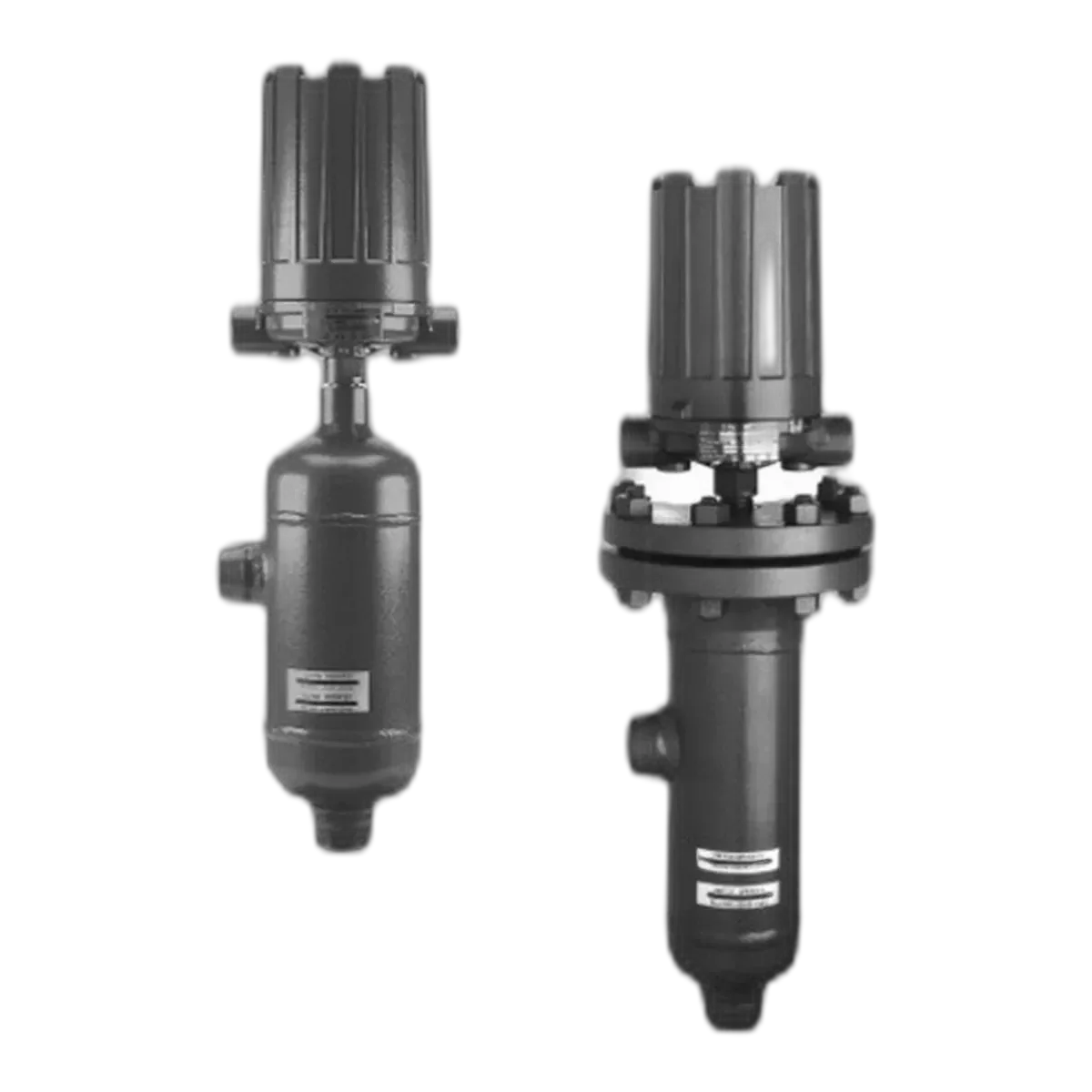

LEVEL SWITCH 3176 0021 76 is a pretty critical sensor that keeps an eye on fluid levels in various tanks on the rig. Think hydraulic reservoirs, fuel tanks, maybe even the water tank for dust suppression. Its job is pretty straightforward: tell the control system if the fluid is getting too low or, sometimes, too high. This isn't just for a dashboard light; it often triggers a pump to kick on, or more critically, it'll shut down a function or even the whole rig to prevent damage if a level drops below a safe operating point. It's a simple feedback loop, but a crucial one to keep things from running dry or overflowing.

When one of these level switches starts acting up, you’ll usually notice some weird behavior. The most common thing is false alarms – the rig might throw a low fluid warning when the tank is actually full, or vice-versa. Or, even worse, it fails to trigger an alarm when your hydraulic tank is actually running low, which can lead to a pump cavitating or the system starving for oil. I've seen rigs unexpectedly shut down mid-drill because a faulty switch told the PLC there was no fluid, even though the tank was topped off. Conversely, sometimes a pump will just keep running, trying to fill a tank that's already full, all because the switch isn't telling it to stop.

Replacing a level switch isn't usually a huge job, but it's worth taking a minute to check a couple of things while you're in there. Before you even pull the old one, give the wiring harness and connectors a good once-over. Corrosion or a loose pin is often the real culprit, not the switch itself. And when you put the new one in, just double-check that it's oriented correctly, especially if it's a float-style switch. Sometimes they can be installed upside down if you're not paying attention, which obviously defeats the whole purpose.
