PLC

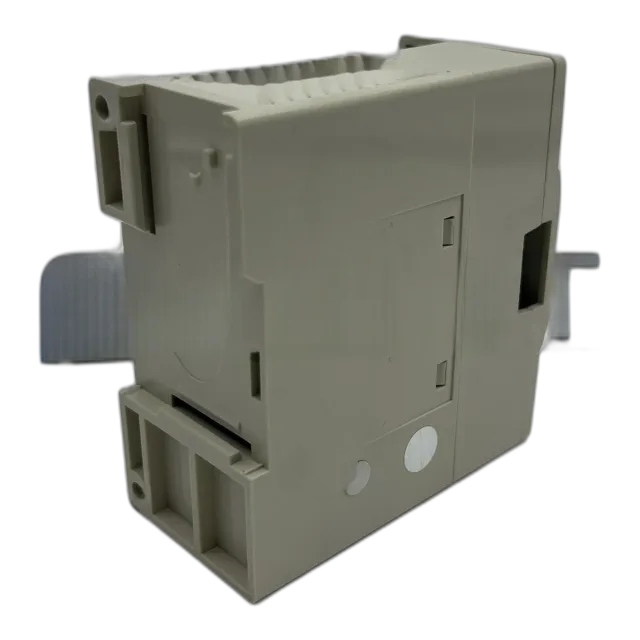

PLC 3176 0045 50 is basically the brains for a whole section of the rig's automated functions. It takes all the inputs from your pressure transducers, limit switches, and encoders, then processes that information according to its program. After that, it sends out the commands to the hydraulic valves, electric motors, or contactors. Think of it as the central traffic cop making sure everything happens in the right sequence and at the right time – like when to extend a cylinder, start a rotation, or engage the hammer. Without it, your rig's just a pile of expensive metal.

When this unit starts to give up the ghost, you'll usually see some pretty frustrating and unpredictable behavior. Maybe a specific drill cycle just won't initiate, or it'll stop halfway through for no apparent reason. You might get intermittent fault codes popping up on the display that don't seem to stick around, or a function like rod handling becomes sluggish and erratic. Sometimes, a solenoid valve won't get the signal to open, or a motor won't spin up when it should. It's rarely a clean, hard failure; more often it's just flaky logic that'll drive you nuts trying to chase down.

If you're swapping one of these out, the biggest thing to remember is that it's not just a plug-and-play component. You absolutely have to make sure you've got the correct software program loaded onto the new PLC, specific to your rig's model and configuration. Don't just assume it comes pre-loaded or that any program will do; that's a surefire way to create more headaches. Always try to back up the existing program if possible, and verify the new one before you even think about putting it into service. And while you're in there, give all the wiring harness connections a good once-over; sometimes a loose pin can mimic a PLC fault.
