WELDED HINGE

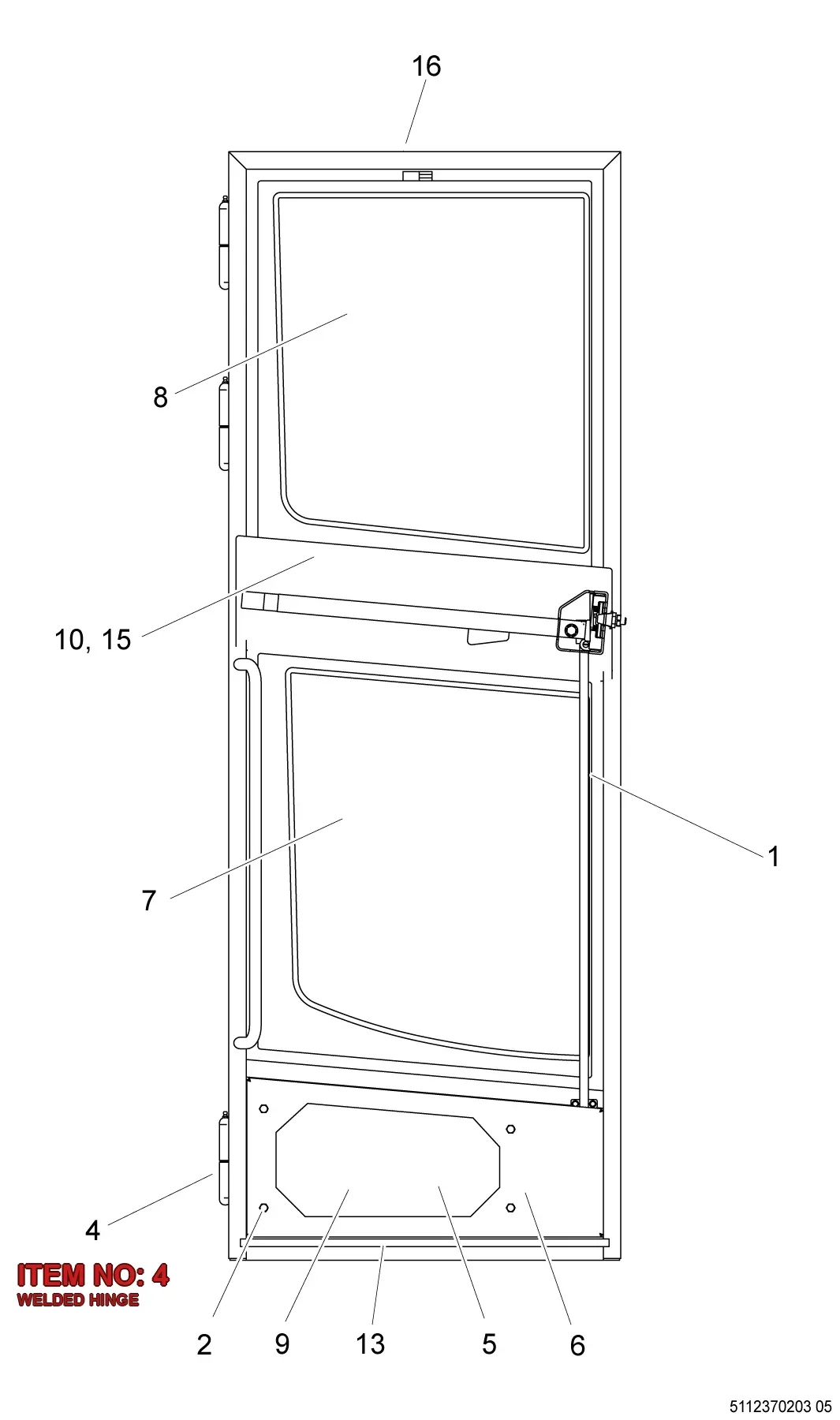

WELDED HINGE 3217 9440 20 is usually found holding something like a service access panel or a protective cover on the rig. It’s not a fancy part, but it’s crucial for keeping things where they belong while still letting you get in there for maintenance or checks. Think of it as the pivot point for whatever needs to swing open and shut, keeping dust out or protecting internals from damage, but still making sure you can actually access the stuff behind it when you need to.

When one of these hinges starts to go bad, you’ll usually notice it pretty quick. The most common thing is the door or cover it's attached to won't sit right anymore. It might sag, rub against the frame, or just be a real pain to open and close smoothly. Sometimes, if it's really worn, you'll hear a distinct squeak or groan every time that panel moves, or it might even rattle loose when the rig's vibrating during drilling. That misalignment can also let in more dust and water than you want, which is never good for the electrical or hydraulic components behind it.

Replacing a welded hinge means you're usually cutting out the old one and welding in the new, so make sure you've got the right gear and skills for that. Before you even get to that point, though, always double-check the mounting points and the integrity of the surrounding structure. Sometimes the hinge itself is fine, but the metal it's attached to has cracked or fatigued, especially around the welds. People often just focus on the hinge pin, but the weld itself and the base material are just as important to inspect.
