BRACKET PLAT

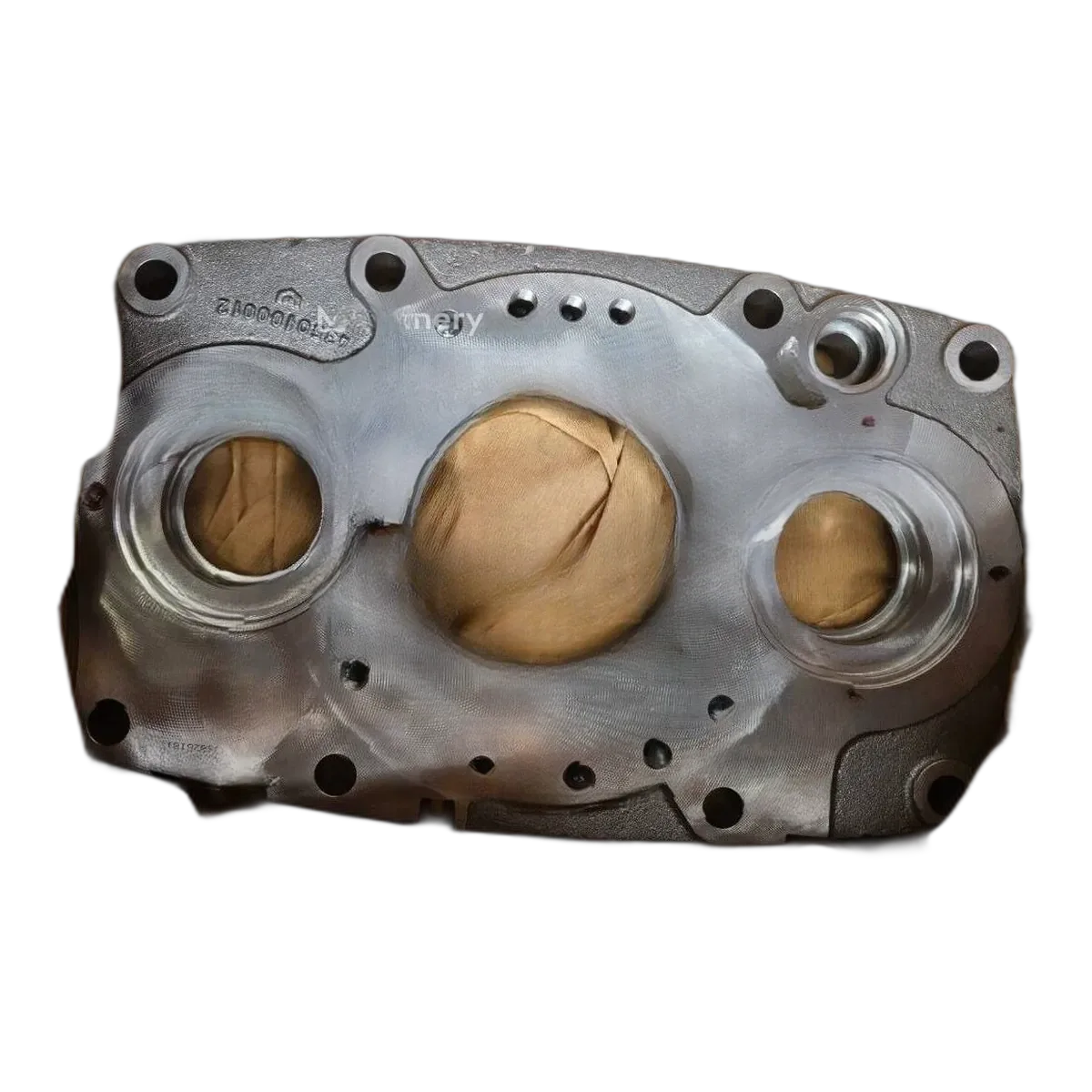

BRACKET PLAT 3719 0167 12 Acting as a solid foundation, this plate bracket holds a specific component firmly in place on the drill rig, typically on the boom assembly or feed beam. Its main purpose is to ensure that the mounted part remains stable and correctly aligned despite the constant, heavy vibrations inherent in rock drilling. Proper mounting is essential for preventing premature wear on the components it secures, such as hydraulic fittings or electrical connectors.

The integrity of this bracket is directly linked to the machine's reliability. If the bracket were to crack or bend from fatigue, the component it holds could become loose. A practical example of this is a hydraulic line clamp bracket failing, which could allow a high-pressure hose to chafe against the frame and eventually rupture. A complete failure not only causes downtime but can also create a significant safety hazard from a falling part or a high-pressure oil leak.

During regular machine walk-arounds, visually inspect this bracket for any signs of cracking, especially near welds and mounting holes. Check for any bending or deformation that indicates it has been overloaded. Also, ensure its mounting bolts are secure. If any cracks are discovered, the bracket should be replaced, as field repairs on fatigued structural parts are generally not recommended.
