3B-2223

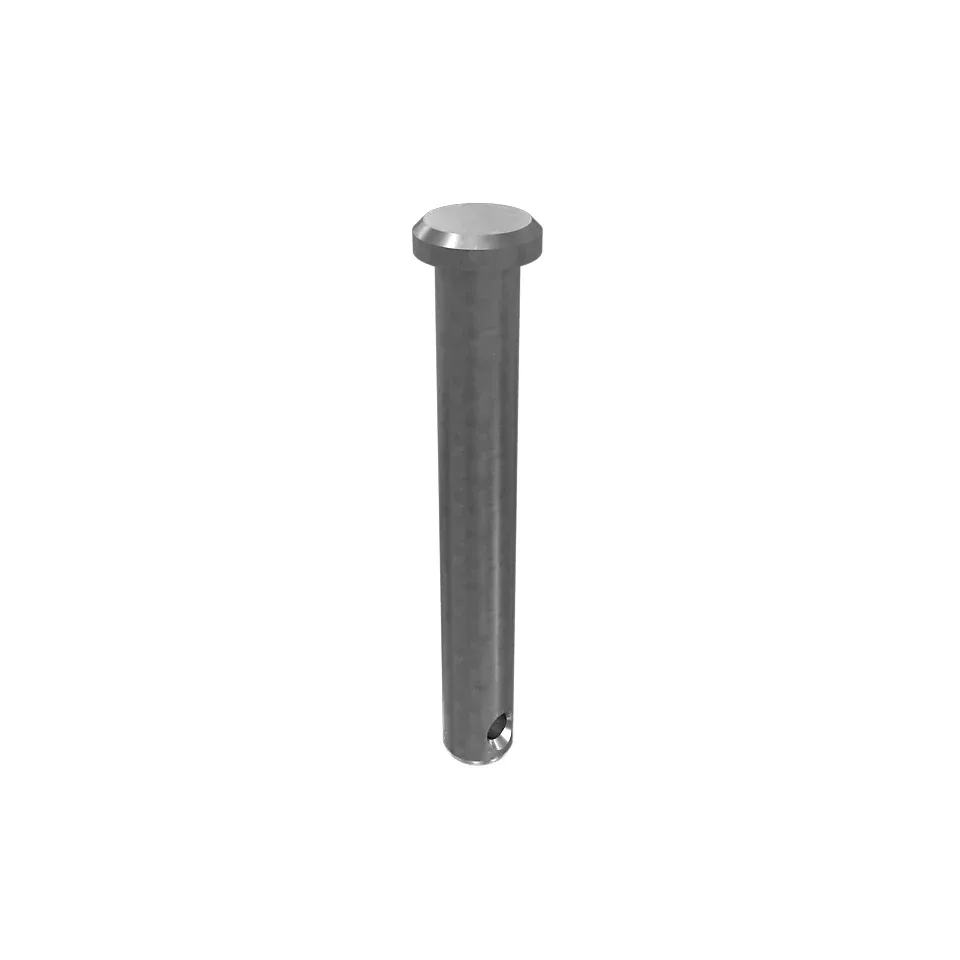

0.5" Diameter Clevis Pin
Half-inch straight clevis pin with drilled cotter pin retention hole.
Description
Quick mechanical linkages rely on smooth pivot points that can take shear loads while letting connected arms swing freely. The cross-drilled tail accepts a standard cotter pin to keep the shank from backing out, and the 25-degree lead-in chamfer…
Overview
Quick mechanical linkages rely on smooth pivot points that can take shear loads while letting connected arms swing freely. The cross-drilled tail accepts a standard cotter pin to keep the shank from backing out, and the 25-degree lead-in chamfer keeps it from hanging up during field installation.
Features
- Pin diameter: 0.50 in (12.7 mm)
- Retention: Cross-drilled through-hole for split cotter pin
- Tip detail: 25-degree lead chamfer for easy alignment
- Ground finish across the bearing surface
Applications
- Mechanical linkages
- cylinder rod ends
- control rod clevis forks
- pivot brackets
Specifications
| Brand | Caterpillar |
|---|
Related parts

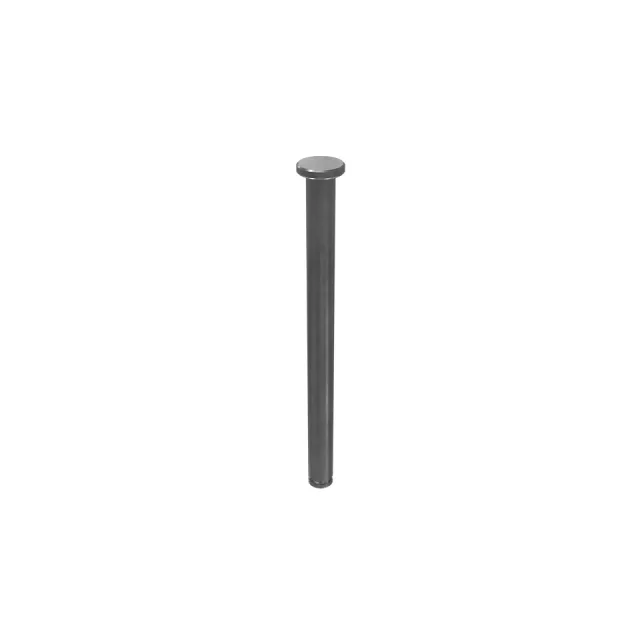

9.5mm Diameter Clevis Pin
258-3726
Similar part

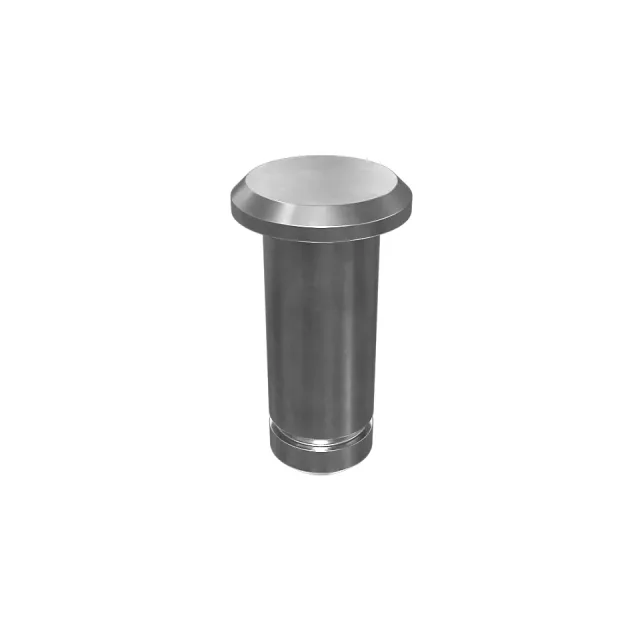

6mm Pin Diameter Clevis Pin
269-2892
Similar part

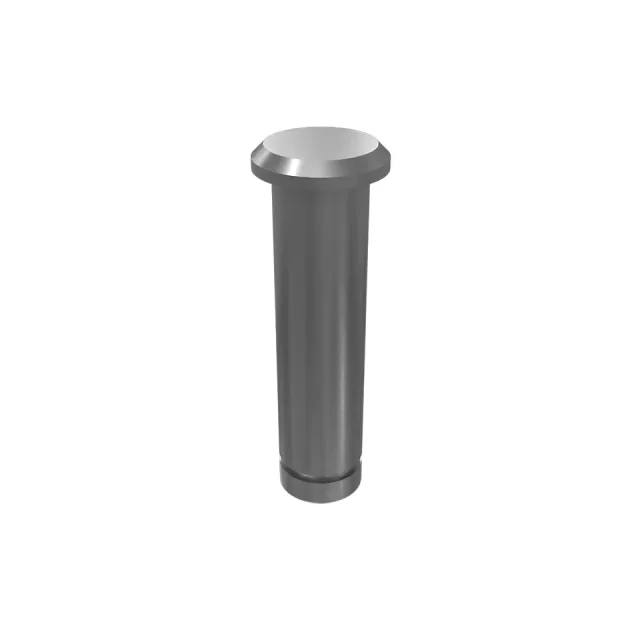

10mm Pin Diameter Clevis Pin
9R-7138
Similar part

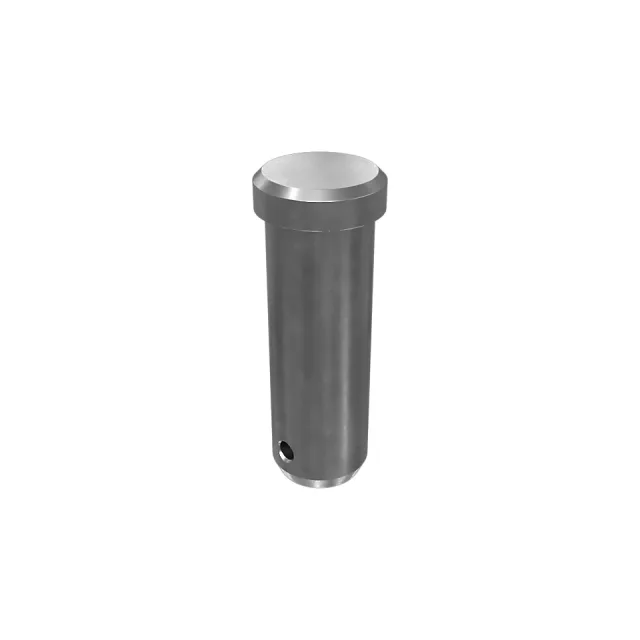

25.25mm Diameter Clevis Pin
253-8675
Similar part

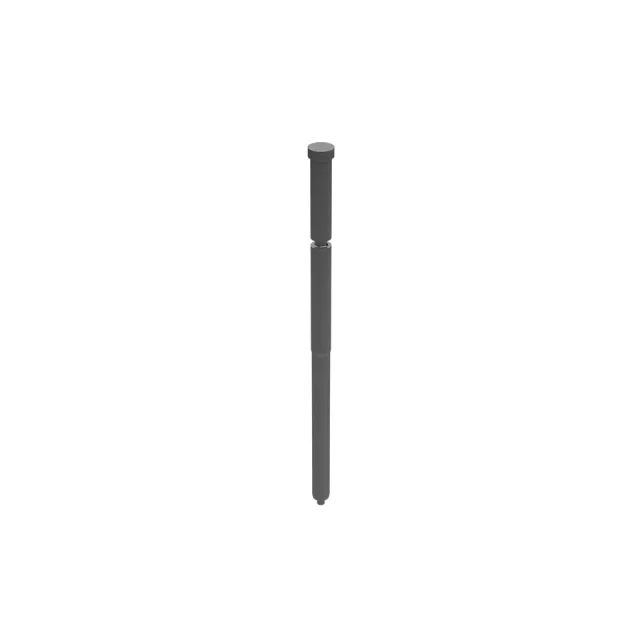

8mm Head Diameter Clevis Pin
293-4409
Similar part

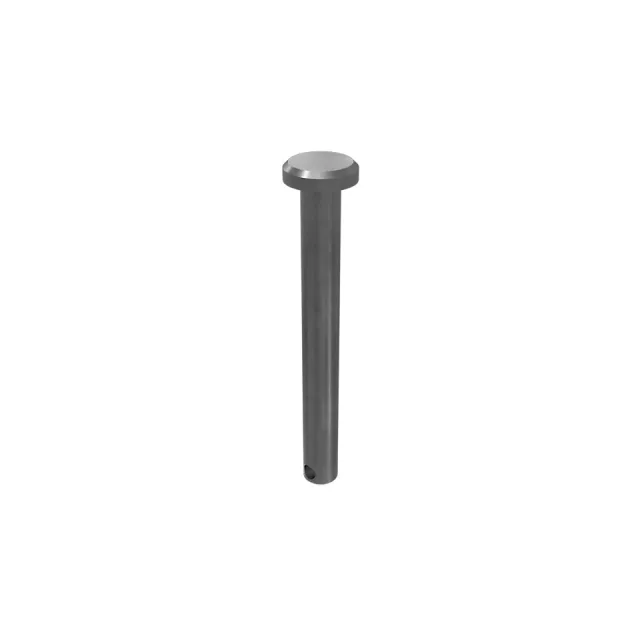

0.438" Diameter Spring Guide Clevis Pin
