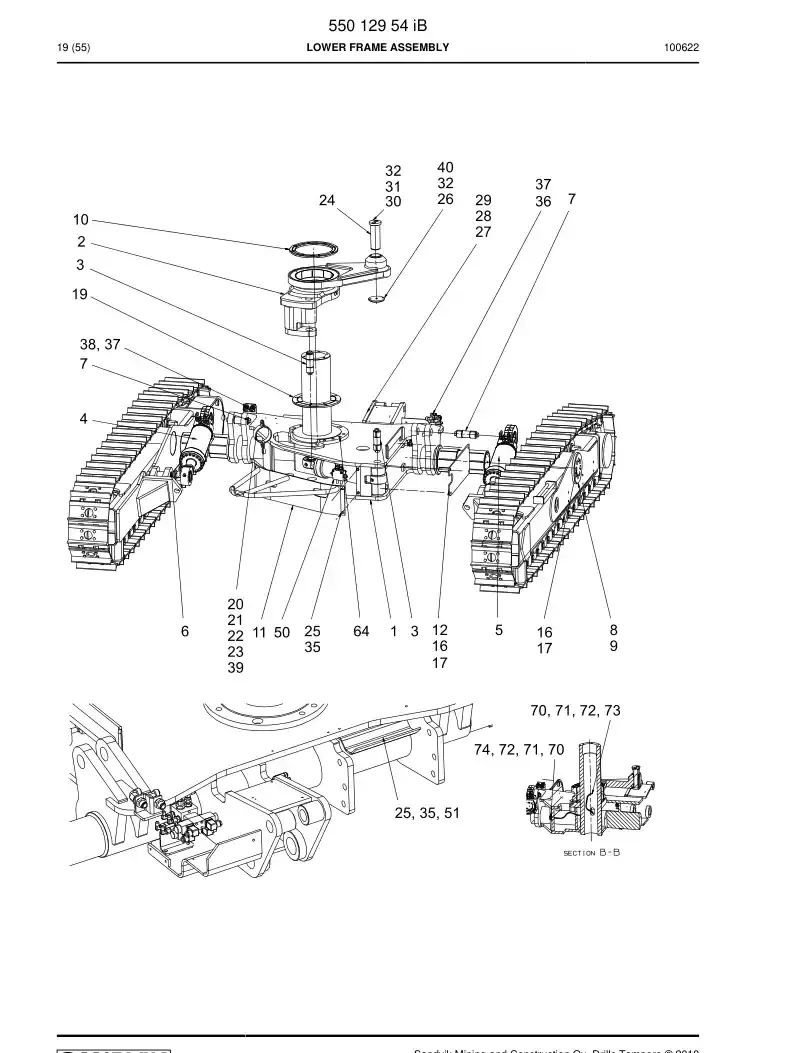

LOWER FRAME ASSEMBLY

550 129 54I LOWER FRAME ASSEMBLY A frame assembly serves as a foundational structure within the drilling rig, often supporting major components like the feed beam, drifter carriage, or other critical sub-assemblies. It's designed to withstand the significant dynamic loads and vibrations inherent in rock drilling. Its primary role is to provide rigid support and maintain the correct geometric relationships between various moving and stationary parts, which is vital for the overall functionality of the drill.

Maintaining the integrity of this structural frame is paramount for both operational safety and drilling performance. A compromised frame can lead to misalignment of the drill string, increased wear on bushings and bearings, and a significant reduction in drilling accuracy and penetration rate. For instance, if the frame supporting the feed system becomes bent or cracked, the drifter might not advance smoothly or maintain proper contact with the rock face, wasting impact energy and causing premature wear on drill bits and rods.

Typical failure symptoms for a frame assembly include visible cracks, deformation, or unusual play in attached components. Operators might also notice increased vibration or difficulty in maintaining a straight hole. Regular visual inspections for signs of fatigue, especially around welds and bolt-on points, are important. If significant damage is identified, replacing the frame assembly is necessary to restore the rig's structural integrity and prevent more extensive damage to other expensive components.
