LIST OF CYLINDERS

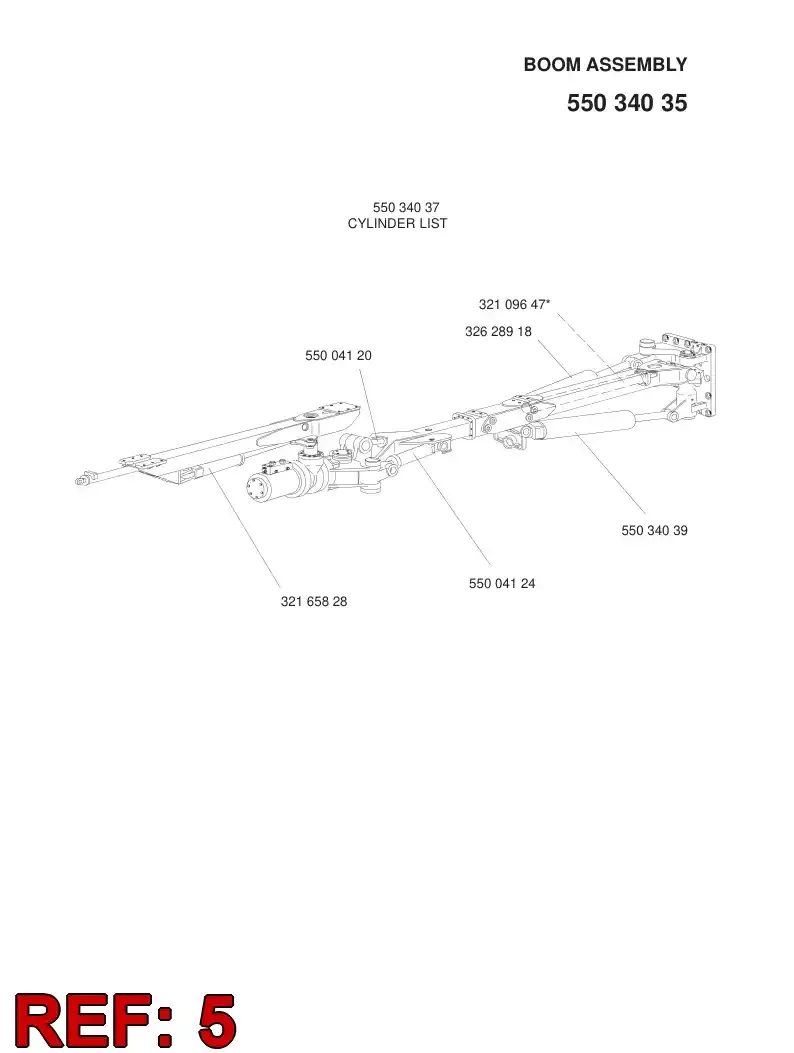

550 340 37 LIST OF CYLINDERS A hydraulic or pneumatic cylinder is a fundamental component in any modern drilling rig, responsible for converting fluid pressure into linear mechanical force. These cylinders are crucial for many operations, from precisely positioning the drill boom and feed beam to clamping components or stabilizing the machine during drilling. Their reliable function ensures that the drifter can be accurately advanced into the rock face or that the machine maintains a steady stance, directly impacting drilling accuracy and overall operational efficiency.

When a cylinder begins to fail, it can significantly compromise both safety and productivity. A leaking cylinder, for instance, will lose hydraulic power, leading to slower movements, an inability to hold a position, or even uncontrolled drops of heavy components like the boom. This not only reduces drilling penetration rates and increases cycle times but also poses a serious safety risk to personnel working nearby. Maintaining proper cylinder function is key to consistent, high-performance drilling and preventing unexpected downtime.

Common signs of a failing cylinder include external fluid leaks around the rod seals, jerky or inconsistent movement, or a noticeable drift in position when under load. Internally, worn piston seals can cause fluid bypass, leading to a loss of force or speed. Regular inspections for leaks and rod damage are important. If a cylinder shows these symptoms, it often requires replacement to restore full functionality and ensure the drilling rig operates safely and efficiently.
