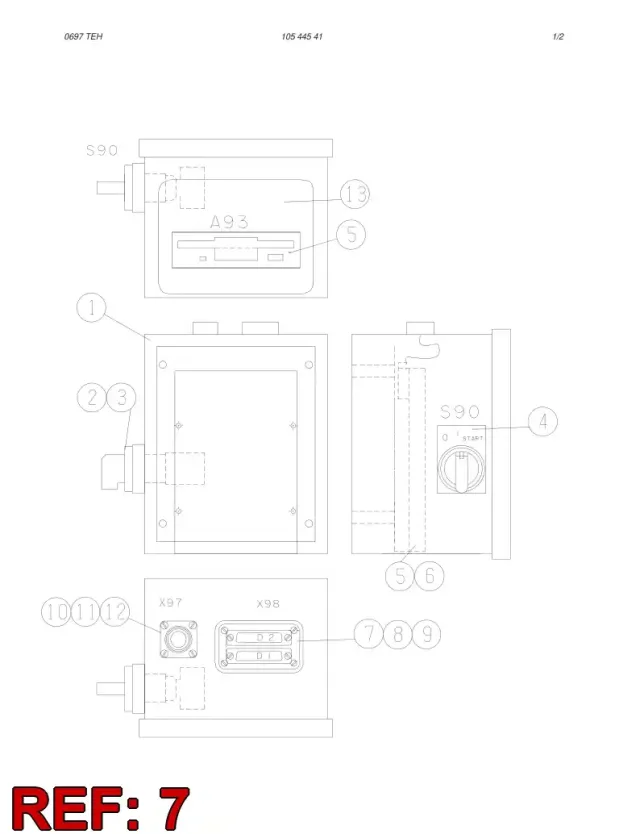

FLAT CABLE ASSEMBLY

550 371 47 CABLE ASSEMBLY Serving as a foundational mounting point, this plate securely connects and aligns key components within a larger assembly, often found on the drifter body or feed system. It absorbs operational vibrations and distributes mechanical loads, preventing misalignment that could otherwise lead to accelerated wear on internal parts like gears and bushings.

Maintaining the correct geometry between parts is essential for drilling performance. For example, if this plate were to bend or crack, it could cause the drifter to sit incorrectly on its cradle, leading to poor energy transfer to the drill steel and slower penetration. A secure and intact plate is fundamental to the overall structural integrity of the equipment.

Inspect this plate regularly for any signs of fatigue cracks, particularly around the bolt holes. Also check for any bending or warping. If you notice that other components seem loose or out of alignment, the plate could be the underlying cause. Replace it immediately if any damage is found to prevent further issues.
