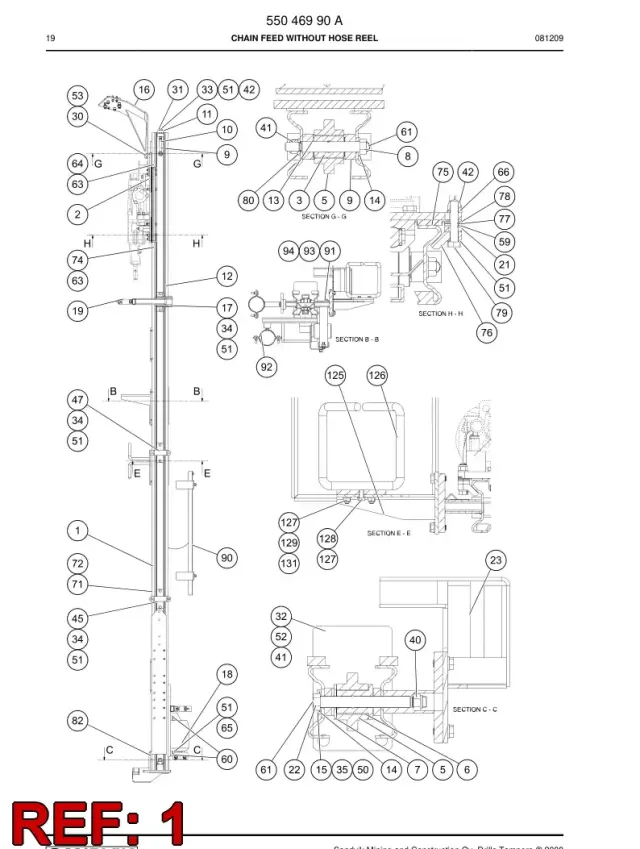

RAIL BEAM

550 662 61 RAIL BEAM is a pretty fundamental piece of the drill rig's structure, specifically designed to take the brunt of the vertical load from your feed system. It’s what connects the feed cylinder or chain assembly to the mast, essentially holding up the entire drill string and rotator when you’re raising it or just holding position. Think of the forces involved when you're pulling a heavy string out of the hole or pushing hard into rock; this beam is right there, handling all that dynamic stress. It's not just a static bracket; it's a working component that sees a lot of action.

When this beam starts to give up, usually from fatigue or impact, you'll definitely notice things getting a bit sloppy. The most common symptom is a noticeable vibration or even a clunking sound coming from the mast area during feed operations. You might also find your drill string isn't tracking as straight as it should, leading to premature bit wear or off-spec holes. Sometimes, you’ll even see some minor cracks forming around the mounting points before a full-blown failure. It’s a gradual thing, but that slop just gets worse and worse, putting stress on other components in the feed system.

Replacing one of these isn't rocket science, but you've got to be thorough. Don't just swap it out and assume everything's good. Always take the time to inspect the mating surfaces on the mast itself. What we often find is that the mounting holes on the mast can get ovaled out or even cracked, especially if the original bolts weren't torqued right or checked regularly. If those surfaces aren't solid and flat, your new beam won't sit correctly, and you'll be back doing the job again sooner than you'd like. And for crying out loud, use new hardware; those old bolts have seen enough stress.
