DOUBLE OVERCENTER VALVE

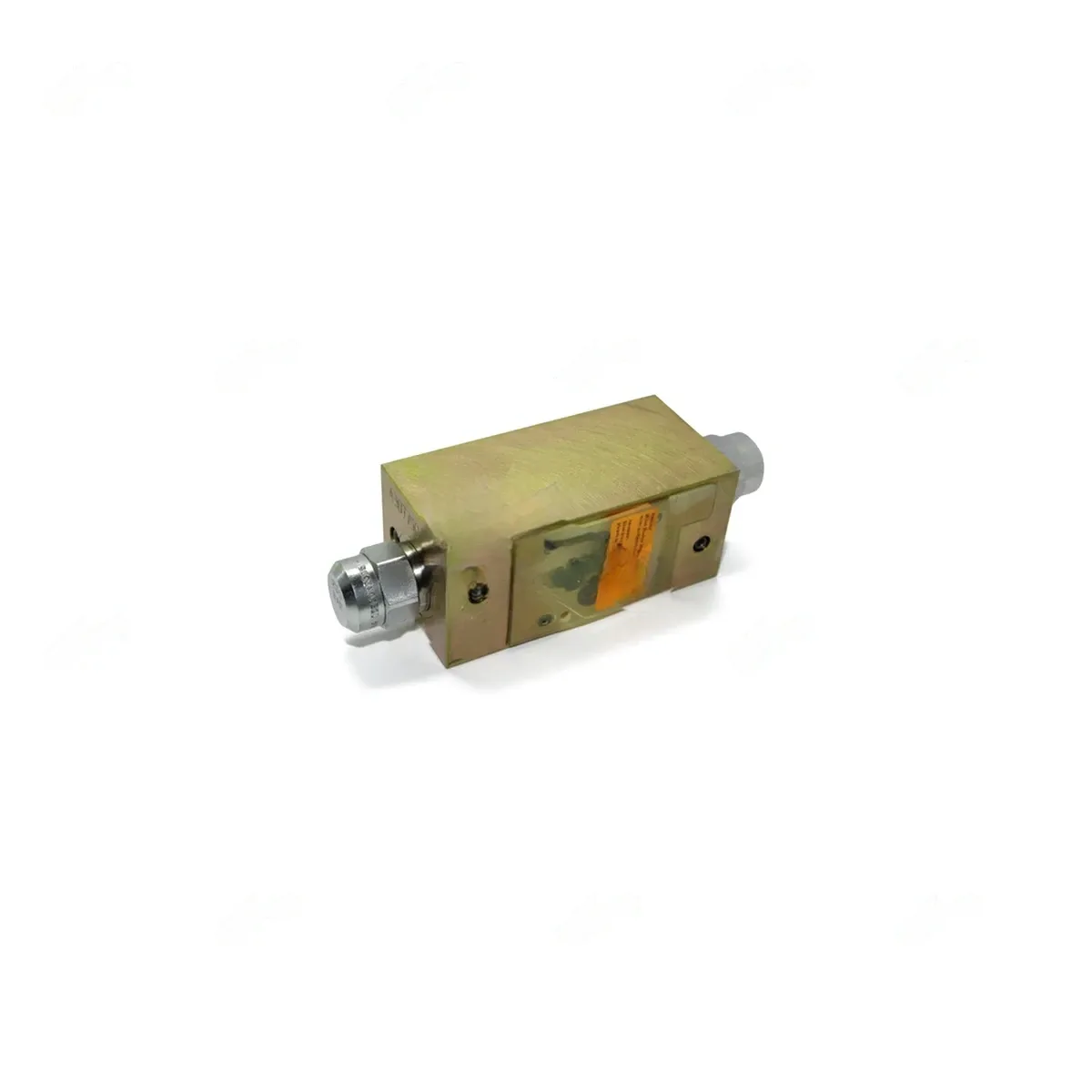

550 853 81 DOUBLE OVERCENTER VALVE , this is the valve that really keeps things from running away on you when you're lowering a heavy load, like a feed beam or a boom. It basically acts as a counterbalance, making sure the cylinder doesn't just free-fall. You get a controlled descent, and it helps prevent cavitation on the return side too, which is a big deal for cylinder life. It's all about smooth, predictable movement, especially when gravity is trying to take over.

When this overcenter valve starts going south, you’ll usually notice the boom or feed cylinder getting a bit jumpy or sluggish when you try to lower it. Sometimes it'll even drift down slowly when it should be holding position. If you hear a chattering noise or feel inconsistent movement, especially under load, that’s a pretty good sign the internal seals are bypassing or the spring is getting weak. It just won't hold pressure like it used to, or it won't open smoothly, making operations feel sloppy and unsafe.

Replacing one of these isn't too bad, but always make sure your system is completely de-pressurized first. When you pull the old one out, give the port a good clean, and always check the O-rings and backup rings on the new valve. People often forget to properly torque these down, or they miss a damaged O-ring during installation, which just leads to leaks and problems right away. Also, make sure you're using the correct hydraulic oil; it makes a difference in how these valves perform and last.
