CYLINDER ASSEMBLY

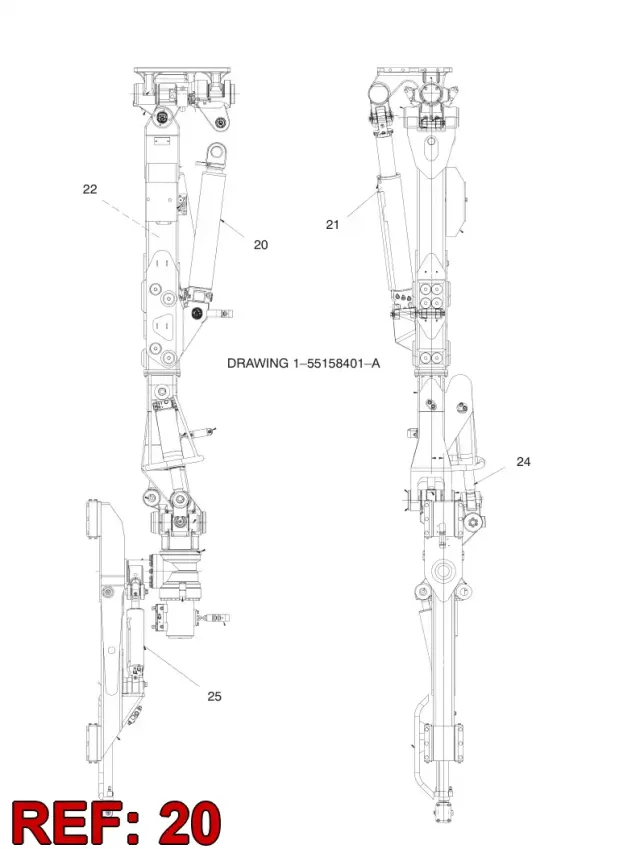

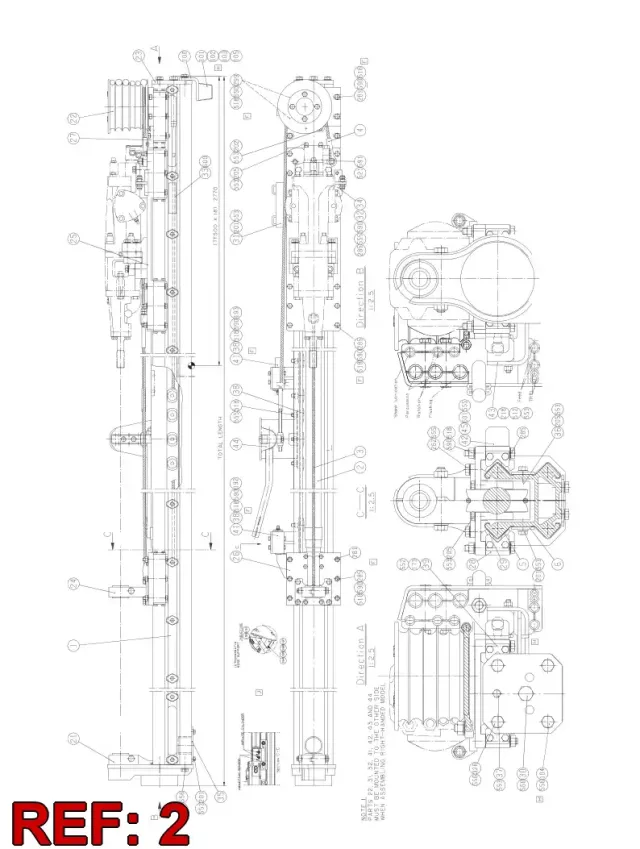

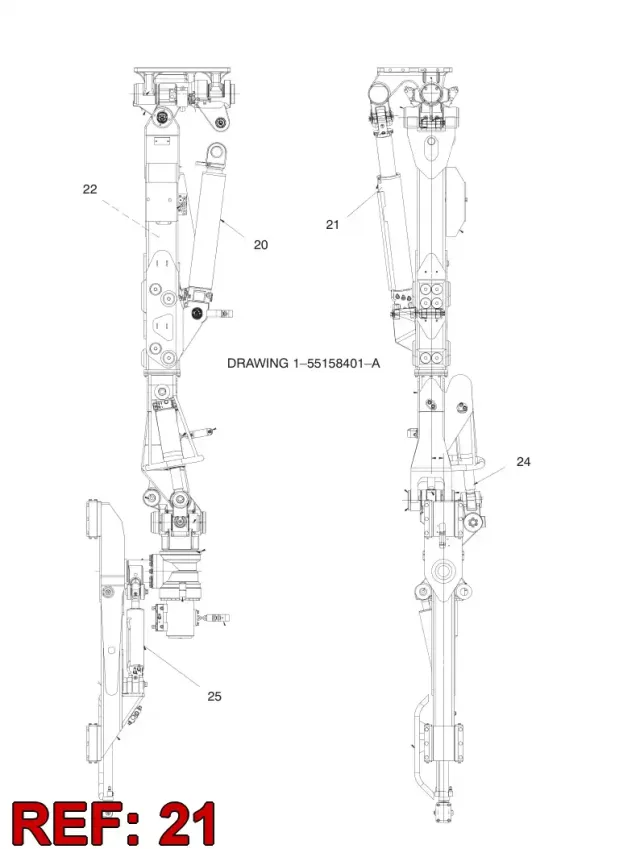

550 996 42F CYLINDER ASSEMBLY A hydraulic cylinder assembly is a fundamental component in underground drilling equipment, responsible for converting pressurized hydraulic fluid into powerful linear motion. These actuators are vital for precise control and movement of heavy machine elements. You'll typically find them in the feed system, where they push and pull the drifter along the feed beam, or within the boom linkage, allowing operators to accurately position the drill string for optimal hole placement.

The proper functioning of these cylinders directly impacts drilling efficiency and overall machine stability. A healthy cylinder ensures smooth, controlled movement, which translates to faster drilling cycles and better hole accuracy. If a cylinder starts to wear internally or its seals degrade, you might notice issues like slow response, jerky movements, or a loss of holding power. For example, if a feed cylinder isn't working correctly, the drifter might not advance smoothly, leading to slower penetration rates and uneven wear on drill bits.

Common signs of a failing cylinder include visible hydraulic fluid leaks around the rod seals or piston seals, often indicating it's time for a seal kit replacement. Another symptom is ""drift,"" where the cylinder slowly retracts or extends under load even when the control valve is neutral, suggesting internal bypass. Regular inspection of cylinder rods for damage or scoring, and promptly addressing any leaks, helps extend component life. When performance significantly degrades or leaks become persistent, replacing the cylinder assembly ensures the rig maintains its operational integrity and safety.
