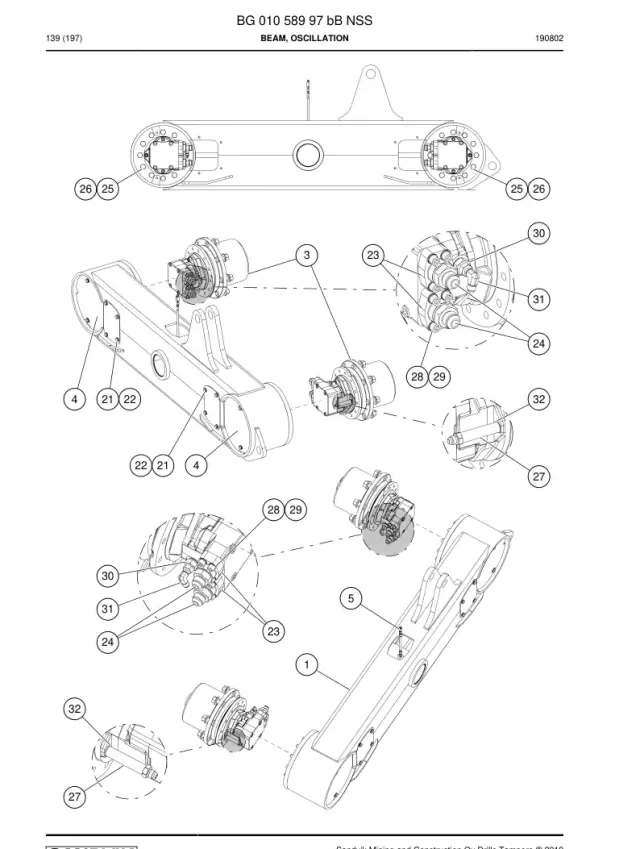

BEAM, OSCILLATION

551 631 29 BEAM, OSCILLATION is usually found right where a major assembly, like the boom or the feed frame, pivots or swings. It’s what keeps that controlled movement smooth and stable, handling all the dynamic loads and keeping things from binding up when you’re trying to position the drill. Think of it as the critical pivot point that allows the rig to articulate without tearing itself apart, managing the side loads and the constant back-and-forth stress during operation.

When this component starts to go, you’ll usually notice a few things pretty quick. The most common sign is often a noticeable slop or play in the articulated joint, which can lead to the boom or feed drifting a bit when you don't want it to. Sometimes you'll hear a new, distinct clunking or grinding noise during movement, especially when the rig is under load. You might also see uneven wear on adjacent components, or even some localized heat build-up if it's really binding up. It’s not just an annoyance; that play can throw off your drill angle and even put extra stress on other expensive parts.

Replacing this isn't always a quick job, so it’s worth keeping an eye on it during your regular service checks. When you do replace it, make sure you properly clean out the housing and check the mating surfaces for any damage or burrs that could shorten the life of the new part. A common oversight is not checking the condition of the associated pins or shafts; often, they've taken a beating too and need to be replaced along with the BEAM, OSCILLATION component to get everything back to spec and prevent premature failure of the new part. Don't forget proper lubrication on assembly, either.
