ADAPTER ASSEMBLY

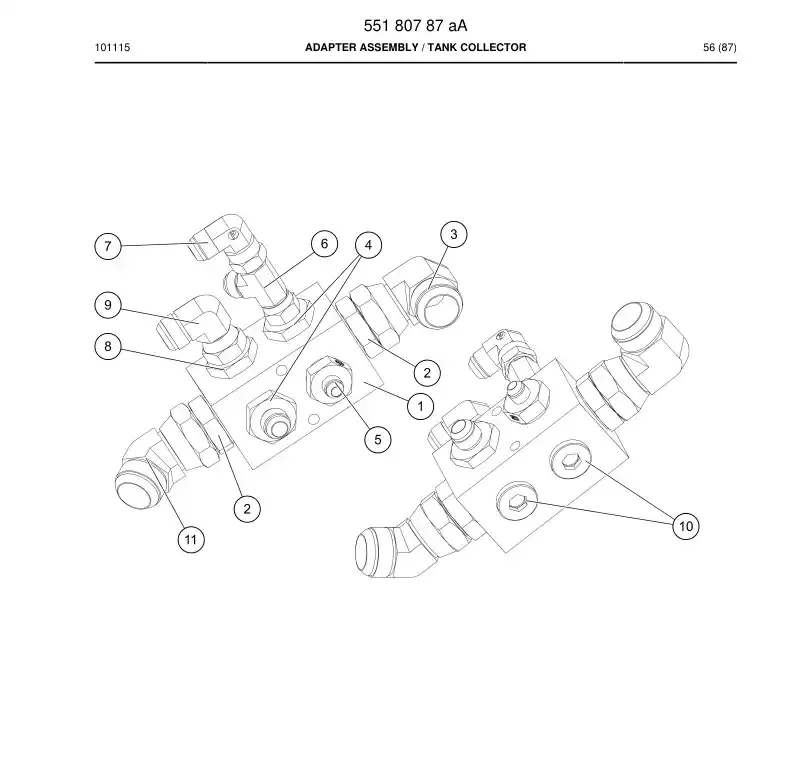

551 807 87C ADAPTER ASSEMBLY This adapter assembly functions as a key connector within the rig's hydraulic system. Its purpose is to join hoses, tubes, or components that may have different thread sizes or connection styles, creating a continuous and properly sealed path for fluid to travel. You'll find fittings like this throughout the machine, from the main power pack to the valve blocks that control the boom and drifter.

Maintaining a leak-free hydraulic circuit is essential for both performance and safety. A failing adapter can cause a drop in system pressure, which directly affects the rig's functions. For example, a small leak here can reduce the pressure available for the drifter's rotation motor, slowing down your drilling. Constant fluid loss also increases operational costs and creates a potential slip hazard for personnel.

A visual inspection for oil leaks or wetness around the connection is the primary way to spot a problem. If an adapter is weeping, it likely needs replacement. When installing a new one, make sure both connecting surfaces are clean and free of damage. Always use the correct seals and avoid over-tightening, as this can damage the threads or the seal itself.
