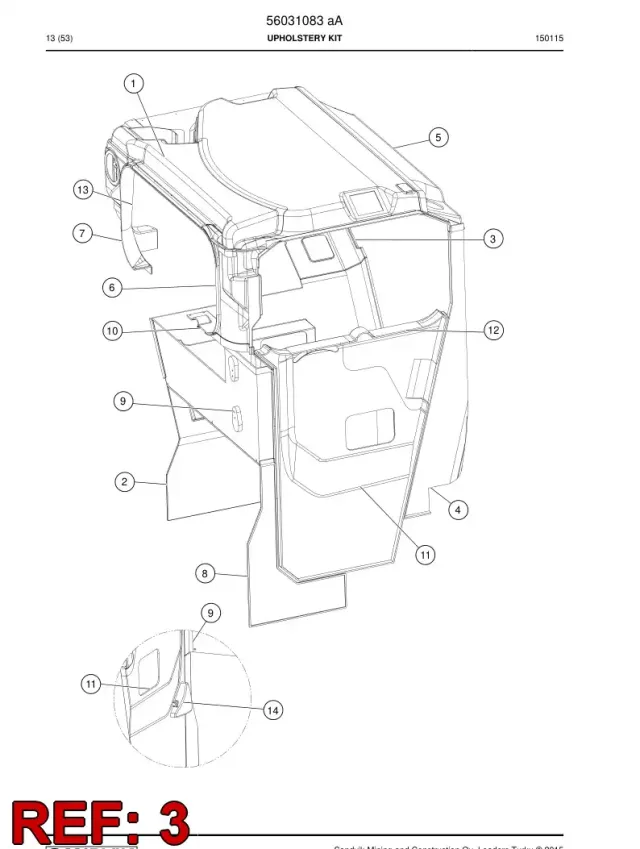

PLATE, LINING

560 313 00 PLATE, LINING A PLATE, LINING plays a fundamental role in the structural integrity of a rock drilling rig. These plates are designed to securely mount and support various components, ranging from hydraulic cylinders and motors to sensors, hoses, or electrical cables. They act as essential anchors, preventing unwanted movement and maintaining the precise positioning of critical assemblies. You might find them in the feed system, supporting the drifter, or within the boom linkage, ensuring that components remain steadfast during demanding drilling operations.

When a PLATE, LINING is compromised, the consequences can quickly impact safety, reliability, and overall drilling performance. If a plate fails, the component it supports could become loose, shift out of alignment, or even detach entirely. This creates a significant safety hazard, especially in underground environments where falling objects or uncontrolled movements are extremely dangerous. Furthermore, misalignment can lead to premature wear on other parts, causing unexpected downtime and costly repairs, directly affecting the rig's ability to drill efficiently and accurately.

Common signs of a failing PLATE, LINING include visible cracks, bending, or deformation, especially around bolt holes or weld points. Loose or missing fasteners are also a clear indicator that the plate's integrity is compromised. Regularly inspecting these plates for any signs of damage or corrosion, and ensuring all mounting bolts are tightened to specification, is important. If a plate shows significant wear or damage, it should be replaced promptly to prevent further issues and maintain the operational safety of the drilling equipment.
