641-7139

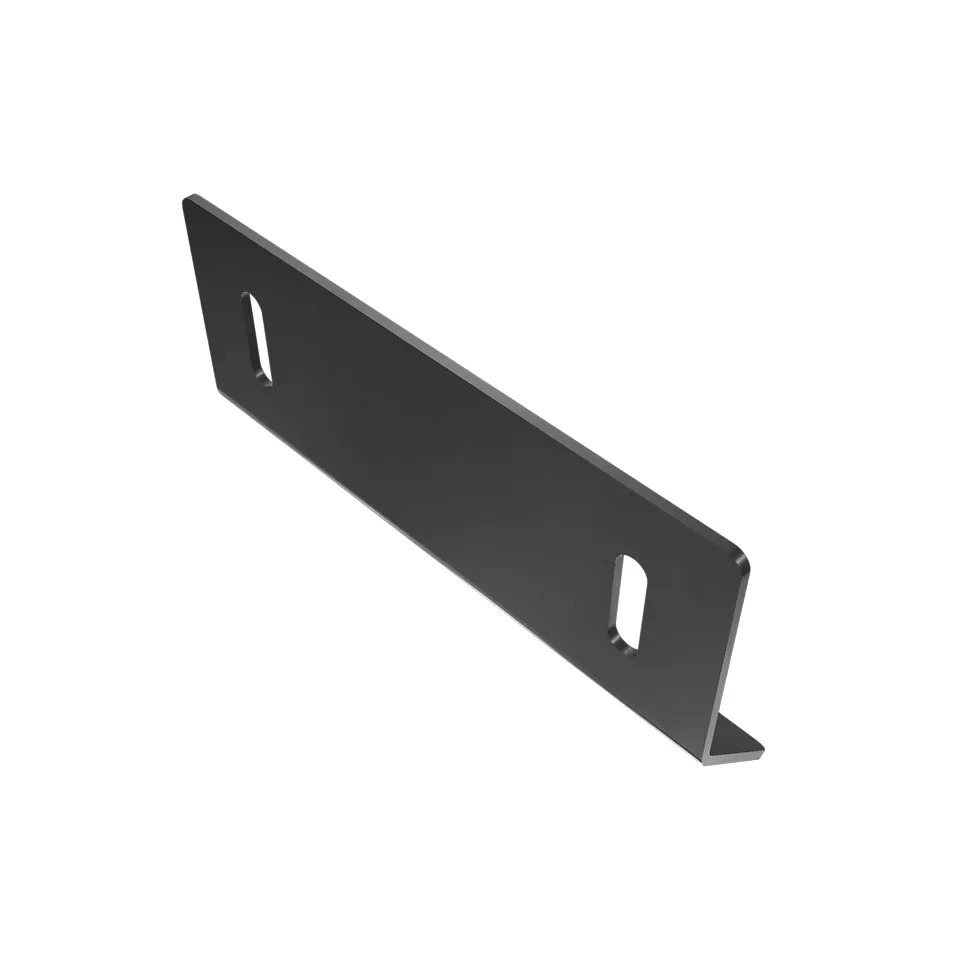

Bottom Screed Support Plate
Lower screed support plate for asphalt screed structural frames.
Description
Heavy structural baseplate tying lower screed framework members together. Carrying the weight and reaction loads of the tamper bars and screed plates, this weldment maintains alignment across the bottom deck so the asphalt lays flat without crowning…
Overview
Heavy structural baseplate tying lower screed framework members together. Carrying the weight and reaction loads of the tamper bars and screed plates, this weldment maintains alignment across the bottom deck so the asphalt lays flat without crowning or dipping. Thick plate stock prevents flexing under the weight of head-of-material loads.
Features
- Heavy-duty structural steel
- Precision-drilled mounting holes
- Surface-treated against rust
Applications
- Structural tie plate on asphalt paver screed bottom sections
Specifications
| Brand | Caterpillar |
|---|
Related parts
Bottom Screed Support Plate
642-0661
Similar part

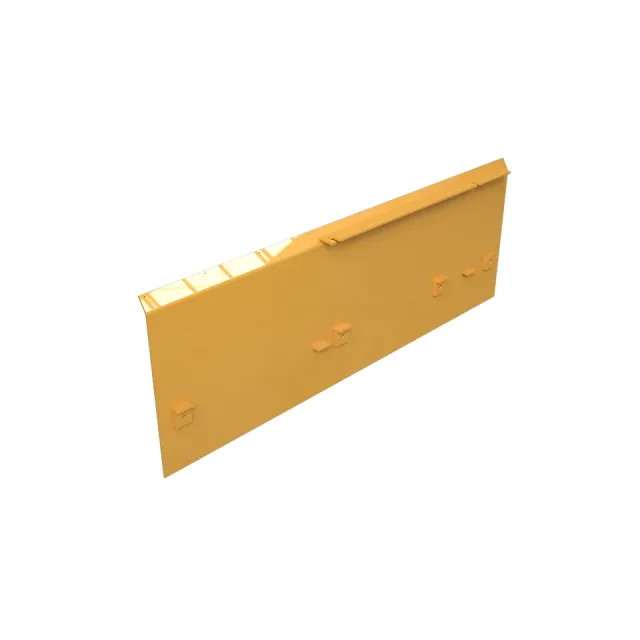

Screed Support Plate
8I-0296
Similar part

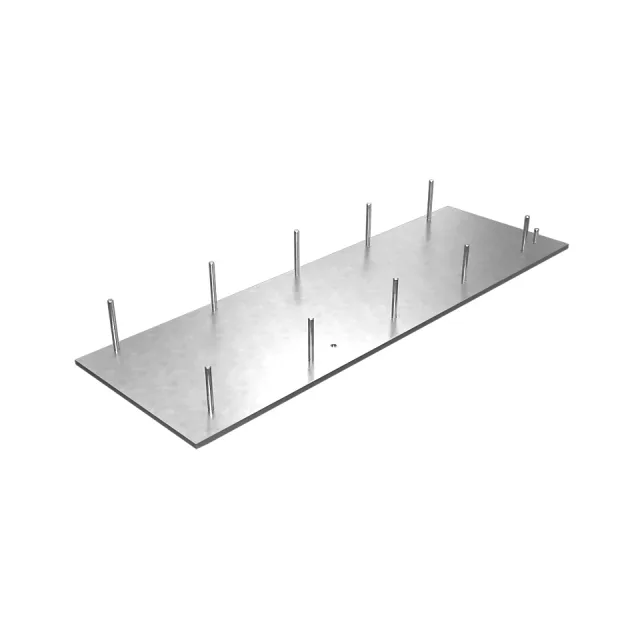

Screed Support Plate
437-4441
Similar part
Bottom Guard Support Plate
366-2458
Similar part
BOTTOM PLATE
070-0250
Similar part
10mm Thick Screed Bottom Plate Spacer
642-0663
Similar part
10mm Thick Screed Bottom Plate Spacer
642-0654
Similar part

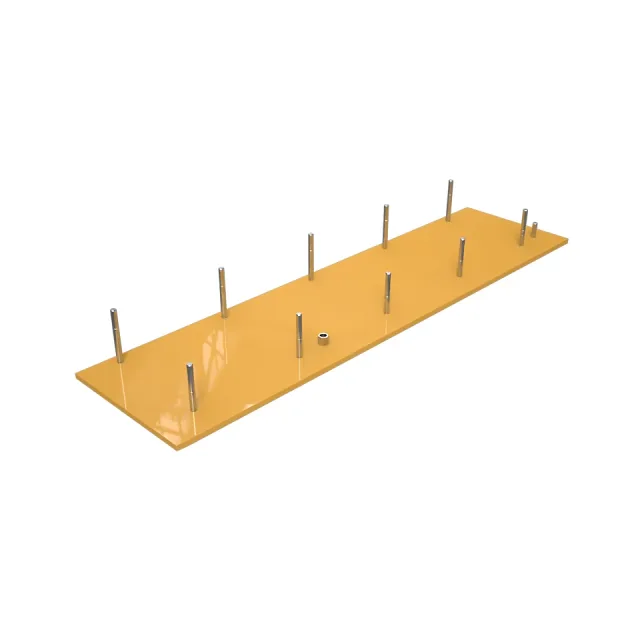

Plate GP - Screed
