BULKHEAD ADAPTER

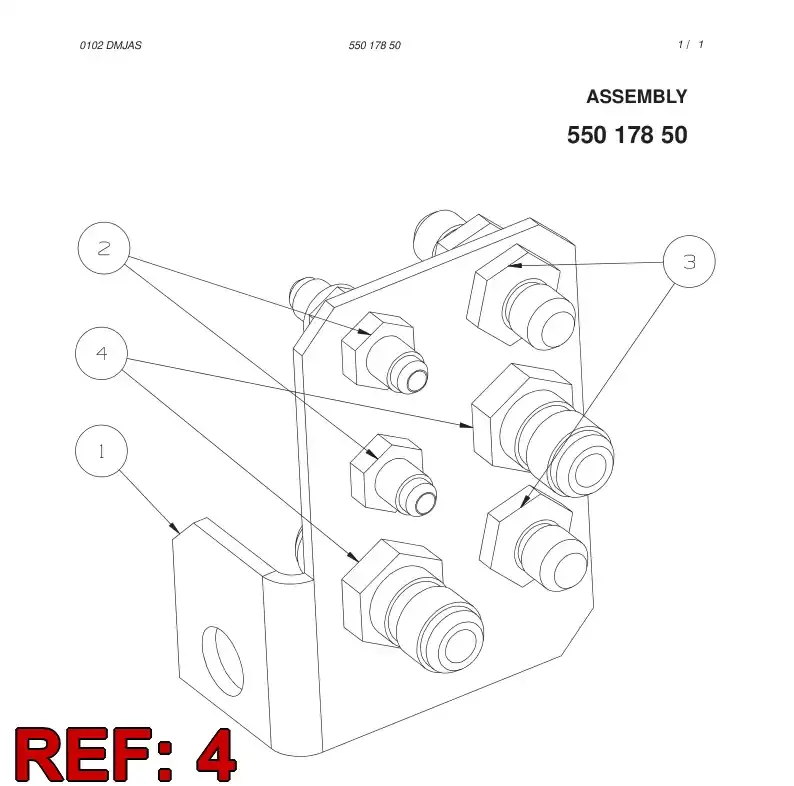

817 099 09 ADAPTER (HYDRAULIC) As a key piece of plumbing, this adapter is used to connect hoses, tubes, and components throughout the rig's hydraulic and pneumatic circuits. You will find fittings like this connecting lines to valve blocks, boom cylinders, or the drifter's supply ports. Its job is to create a solid mechanical joint that can withstand constant pressure and vibration.

A failing adapter can cause significant operational and safety issues. For instance, a cracked fitting can lead to a high-pressure hydraulic oil leak, which is a serious fire and slip hazard underground. Even a minor leak reduces system pressure, resulting in weaker percussion from the drifter or slower boom movements, directly impacting drilling efficiency.

Check for leaks around all fittings during routine maintenance; oil stains or dirt buildup are common signs of a problem. When installing a new adapter, make sure the threads on both parts are clean and undamaged. Always depressurize the system before loosening any hydraulic connection and tighten the new part correctly to prevent it from vibrating loose or damaging the seals.
