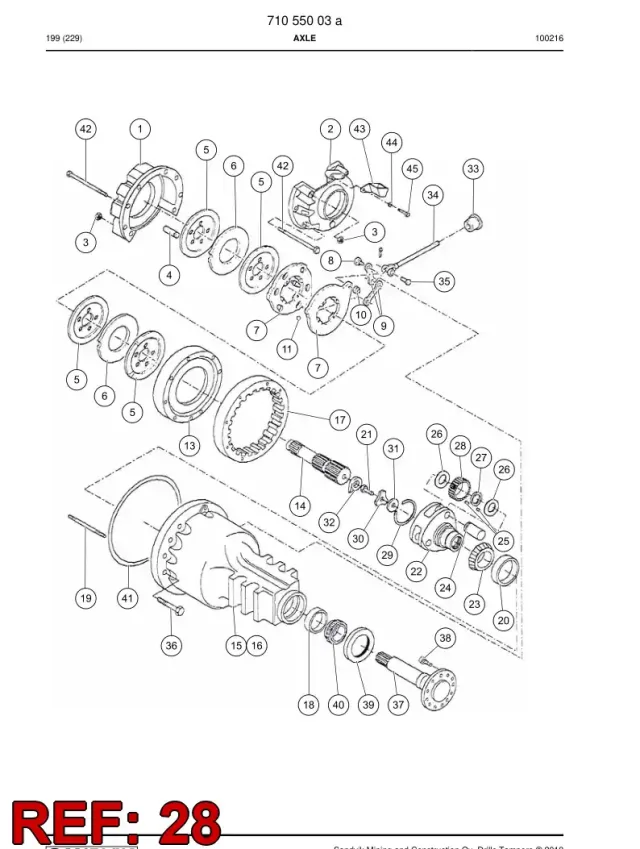

PLANET GEAR+BRAKE

874 556 59 PLANET GEAR is a key piece in the rig's drive system, whether that's in the rotation head, a feed motor gearbox, or even a tramming drive. What it does is pretty straightforward: it meshes with the sun gear and the ring gear, transmitting power and helping to reduce speed while significantly boosting torque. Think of it as one of the workhorses inside that gearbox, taking the input power and converting it into the grunt you need to turn the drill string or move the rig. It's all about getting that mechanical advantage in a compact package.

When this planet gear starts to wear out, you'll definitely notice it. Usually what happens is the tooth profiles get chewed up, or the bearings inside the gear itself start to fail. The first real-world symptom you'll probably pick up on is an increase in noise coming from that gearbox – a sort of grinding, whining, or even a clunking sound, especially under load. You might also feel more vibration through the rig, and if it's in a rotation unit, you could see inconsistent torque or sluggish movement. If it gets bad enough, you'll start finding metal particles in your gear oil, which is a sure sign something serious is going on inside.

When you're swapping one of these out, don't just focus on the single bad gear. It's crucial to pull the whole assembly apart and inspect the other planet gears, the sun gear, and the ring gear for any matching wear patterns or damage. If one went, the others might not be far behind. Also, make sure you thoroughly flush the gearbox to get rid of any metal contamination before you put everything back together. A common thing folks forget is to check the condition of the planet gear shaft or pin it rotates on; sometimes that's where the initial wear starts, leading to the gear's demise.
