PRESSURE TRANSMITTER

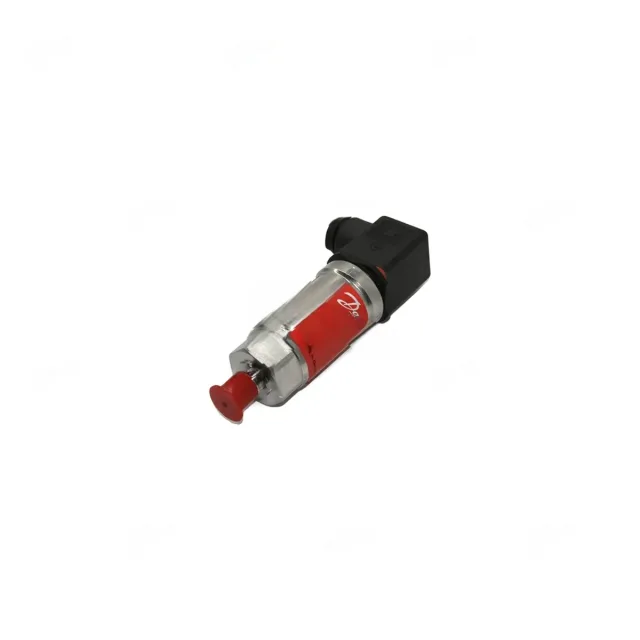

883 922 49 PRESSURE TRANSMITTER (TRANSDUCER) is what tells the rig's control system exactly what's going on with the pressure in a specific circuit, whether it's hydraulic oil or compressed air. It takes that physical pressure and turns it into an electrical signal, usually a voltage or current, which the machine's computer then reads. This signal is crucial for the PLC to make decisions, like whether to open a valve, adjust pump output, or even just display the pressure on your screen. Without it, the system would be running blind, unable to react to changes in load or demand.

When one of these starts to go bad, you'll usually notice some pretty erratic behavior. Sometimes the pressure reading on the display will jump all over the place, even if the actual pressure seems stable. Other times, it'll just flatline, showing zero or max pressure constantly, even when you know that's not right. What often happens is the rig starts throwing false alarms, or worse, the system doesn't react properly to pressure changes, leading to sluggish functions, inconsistent feed rates, or even a drill not impacting correctly because the control loop isn't getting accurate feedback. You might even see a component over-pressurize or under-pressurize because the system thinks everything is fine.

Replacing these isn't usually a huge job, but you've got to make sure you're getting the right range and connection type. Before you even pull the old one out, always check the wiring for any corrosion or damage; sometimes it's just a bad connection. And when you put the new one in, don't forget to check the port it screws into for any debris or thread damage. A lot of guys just swap them out and forget to clean up the port, which can lead to leaks or an inaccurate reading right off the bat. Once it's in, a quick function test and maybe a calibration check if the system allows, and you should be good to go.
