8M-6521

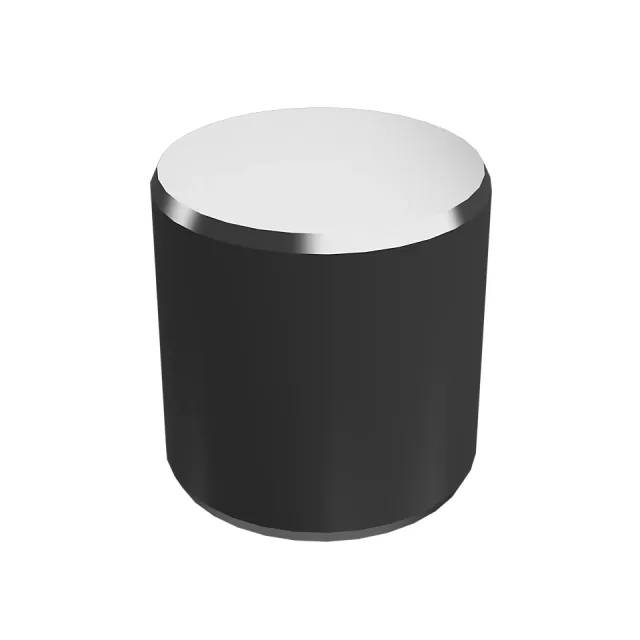

15.75mm Long Chamfered End Dowel Pin
Hardened chamfered dowel pin, 9.368 mm diameter by 15.75 mm length.
Description
Ground to 9.368 mm with lead-in chamfers on both ends, making blind alignment significantly easier when dropping heavy cast parts together. Takes shear loading across split lines so machine bolts only have to manage clamping tension. - Pin diameter…
Overview
Ground to 9.368 mm with lead-in chamfers on both ends, making blind alignment significantly easier when dropping heavy cast parts together. Takes shear loading across split lines so machine bolts only have to manage clamping tension.
Features
| - Pin diameter | 9.368 mm (0.37 in) |
|---|---|
| - Total length | 15.75 mm (0.62 in) |
| - Ends | Dual lead chamfers |
| - Material | Hardened ground steel |
Specifications
| Brand | Caterpillar |
|---|
