9D-7988

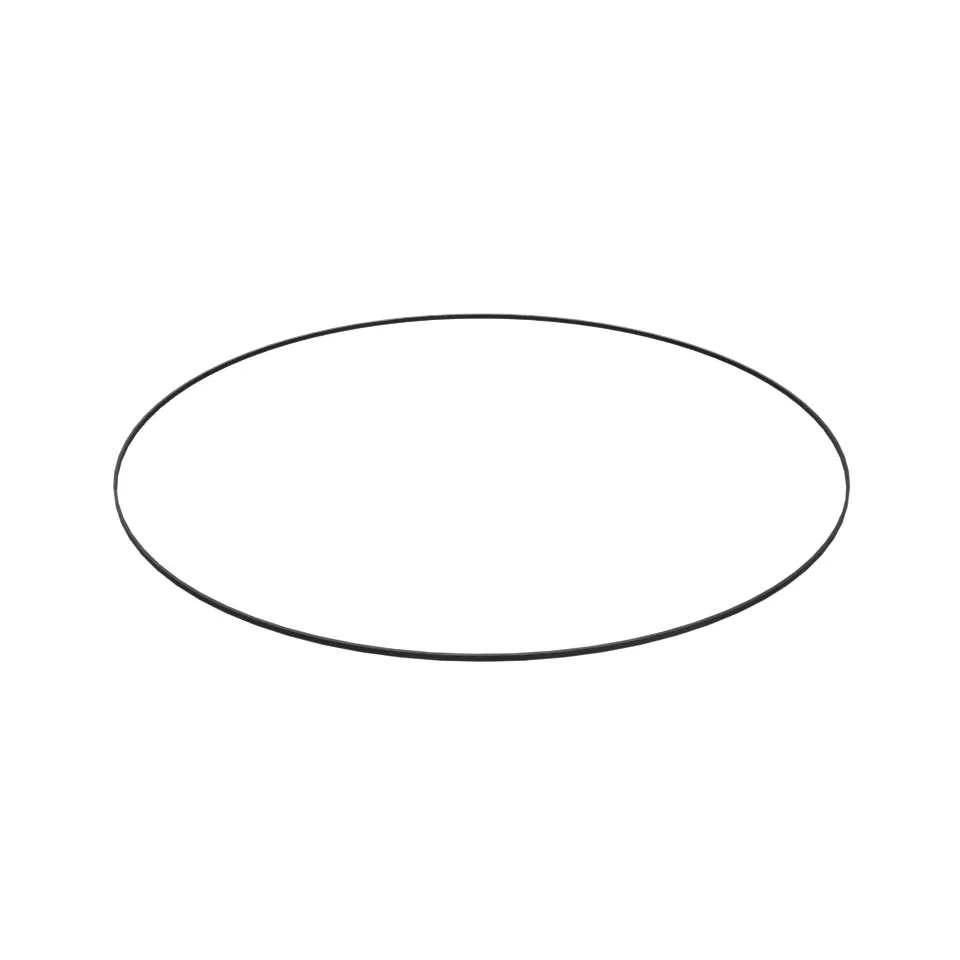

685.50mm Internal Diameter Ring Seal
Large-diameter 685.50 mm ID rectangular cross-section ring seal.
Description
Designed with a flat rectangular profile to prevent twisting inside deep seal grooves during heavy pressure cycling. Resists extrusion and permanent compression set under high operating temperatures, sealing large housings against fluid loss. Inside…
Overview
Designed with a flat rectangular profile to prevent twisting inside deep seal grooves during heavy pressure cycling. Resists extrusion and permanent compression set under high operating temperatures, sealing large housings against fluid loss.
Features
- Inside diameter: 685.50 mm
- Cross-section: Rectangular profile
- Resists fluid extrusion and compression set
Applications
Large bore static and semi-dynamic joints across powertrain casings and hydraulic housings.
Specifications
| Brand | Caterpillar |
|---|
