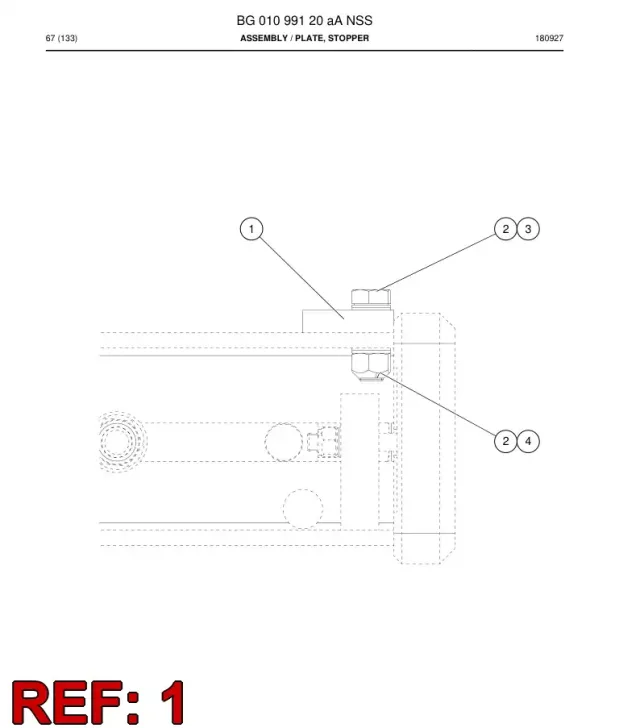

PLATE, STOP

BG 009 922 93A PLATE, STOP this plate is usually found where you need to limit the travel of a cylinder or a moving carriage on the rig. It’s essentially a sacrificial wear item designed to take the brunt of the impact, stopping a component from going past its intended endpoint. Think about a feed beam or a boom cylinder – it’s there to absorb that final bit of force, keeping more expensive parts from crashing into each other or over-extending.

Now, if this plate starts wearing thin, or if it breaks clean off, you'll definitely notice some slop in the system. The component it's supposed to stop will start over-traveling, which can cause all sorts of headaches. On a feed system, for instance, you might get inconsistent drill depth, or the feed motor could bind up as the carriage goes too far. Usually what happens is you’ll hear a new, sharp *clunk* when the system reaches its limit, indicating something’s hitting where it shouldn’t be, or the original stop point has shifted. That's your cue to investigate.

When you're replacing one of these, don't just swap it out and walk away. Always check the mounting hardware – those bolts can take a real beating and often get stretched or sheared if the plate failed under impact. Also, take a good look at the surface it's supposed to be stopping against. If that's chewed up, you're just going to wear out the new plate faster. Sometimes people forget to check for any shims or washers that might go behind it, which are critical for proper spacing and alignment.
