GUIDE A?52

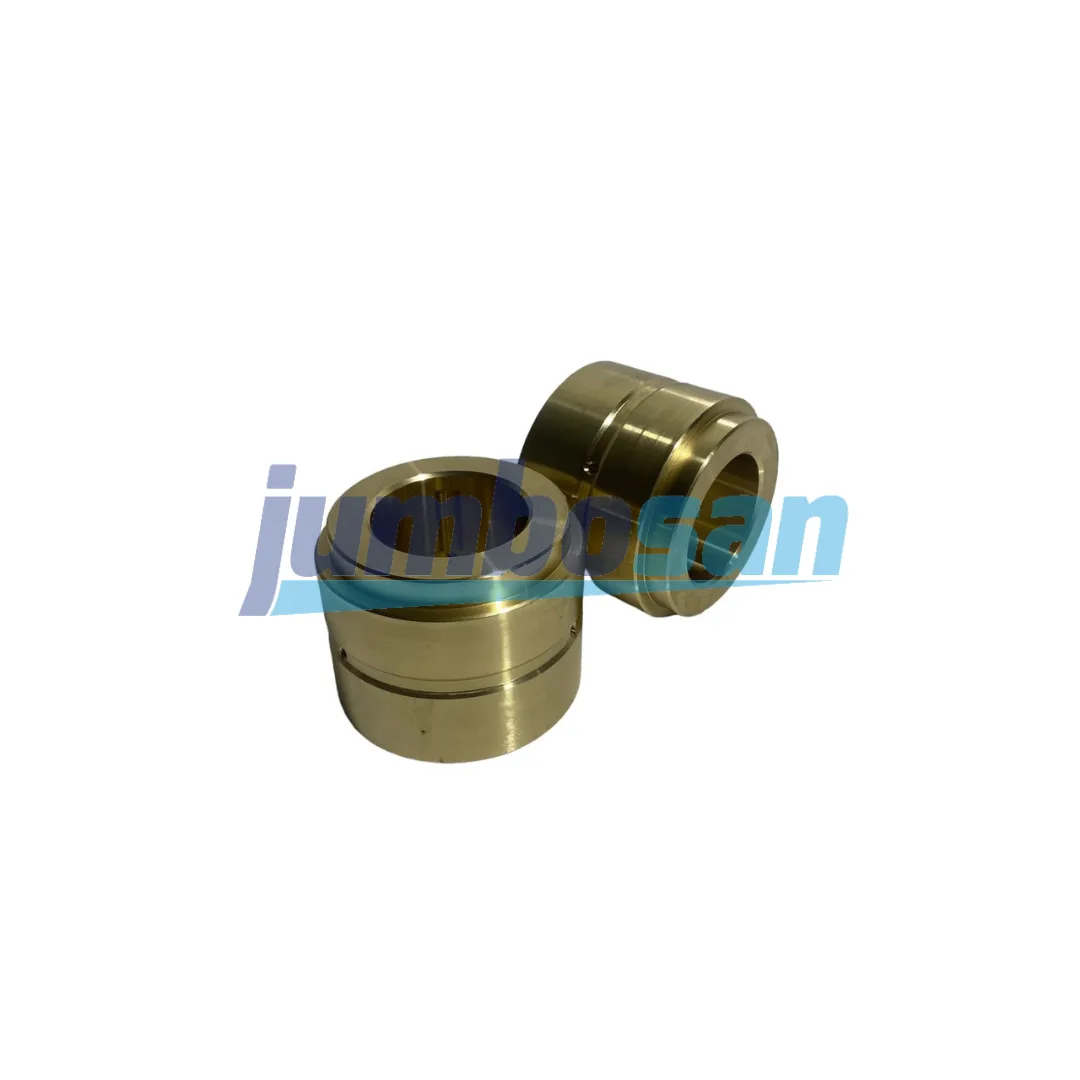

GUIDE A?52 3115 5468 00 A guide plays a fundamental role in maintaining the correct alignment of moving parts within the drilling feed system. It helps direct the drifter carriage or the drill string as it advances into the rock, ensuring a straight and consistent drilling path. Proper guidance minimizes friction and prevents excessive wear on the feed beam and other expensive components, which is essential for sustained drilling operations.

The integrity of these guides directly impacts drilling performance and safety. If a guide becomes worn or damaged, the drifter or drill rod can experience excessive play, leading to crooked holes, increased vibration, and reduced penetration rates. This misalignment can also put undue stress on the drifter, drill rods, and bits, accelerating their wear and potentially causing premature failure. Maintaining precise alignment is key to achieving optimal drilling accuracy and maximizing the lifespan of your drilling consumables.

Regular inspection for wear, cracks, or deformation is crucial for guides. Listen for unusual noises or observe any excessive play in the feed system during operation, as these are common indicators of a worn guide. Replacing a worn guide promptly prevents further damage to the feed beam and drifter, helping to maintain drilling efficiency and avoid more costly repairs down the line. Always refer to your machine's maintenance manual for specific replacement intervals and procedures.
