SLIDE BAR (4

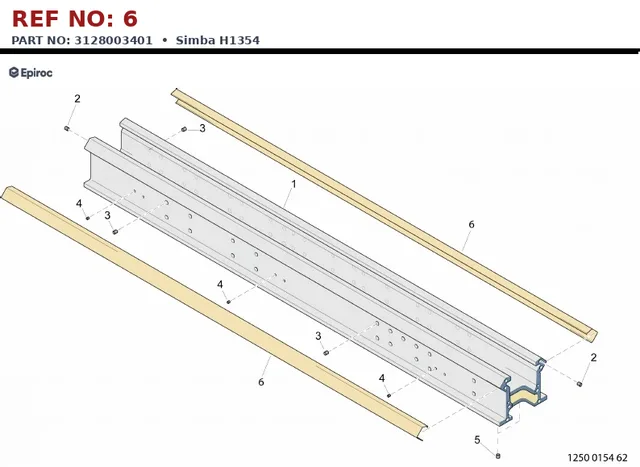

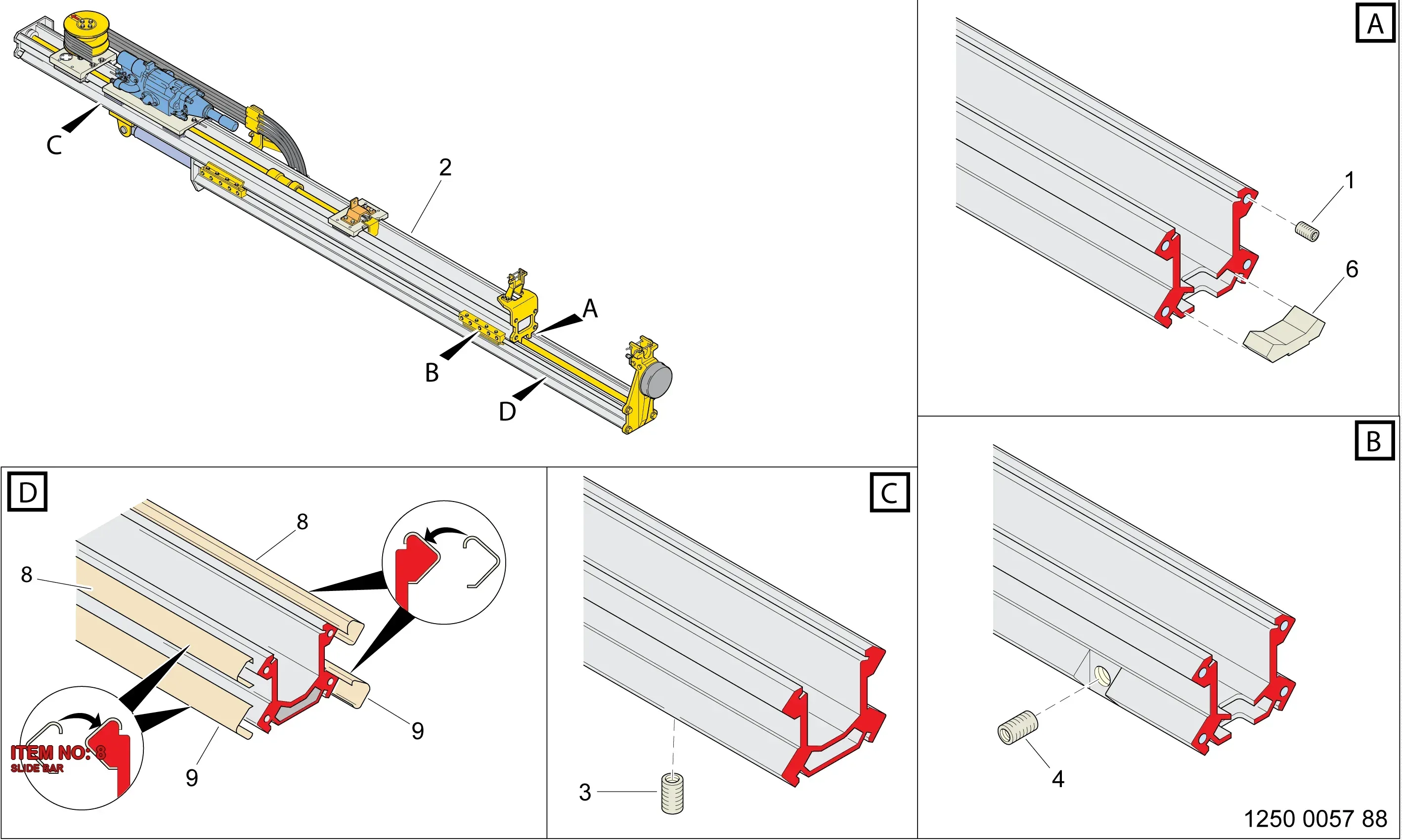

SLIDE BAR (4 3128 0458 01 is essentially a wear surface, a critical piece that keeps the drill head or feed beam tracking straight and true. Think of it as the rail that the main carriage slides along. It’s designed to take the brunt of the friction and lateral forces, ensuring that whatever it's guiding moves smoothly and doesn't bind up or wander off course during drilling. It’s a simple concept, but without it, you'd have a real mess on your hands trying to keep things aligned.

When this bar starts getting worn down, you'll definitely notice it. Usually what happens is the guided component, say the drill head, starts to get sloppy. You might hear a new clunking sound, especially when the feed changes direction, or you’ll feel increased vibration through the rig. The most common symptom I've seen is the drill string not tracking straight, leading to crooked holes or the feed system binding up because the clearances have opened up too much. It's not just about noise; it directly impacts drilling accuracy and can put undue stress on other, more expensive components.

Replacing these isn't usually a huge job, but it's one you don't want to rush. When you pull the old one out, always take a good look at the mating surfaces – the guide blocks or rollers that ride against it. Sometimes those are just as worn, and if you don't replace them too, you're just putting a new bar on a worn-out system, and it won't last. Also, make sure you clean out any old grease and apply fresh, appropriate lubricant to the new bar. A lot of guys forget that last bit, and it makes a big difference in how long the new part holds up.
