KEY

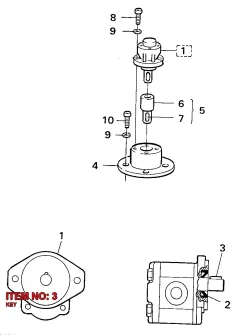

KEY 3128 3061 24 is one of those small but absolutely critical pieces that locks a shaft to a hub, gear, or pulley. Think of it as the mechanical fuse that makes sure the power actually gets from point A to point B without any slip. On a drilling rig, you'll find these transmitting torque in various drive lines, maybe connecting a hydraulic pump shaft to its drive coupling, or locking a gear onto a transmission shaft. It’s what keeps things rotating together, preventing any relative movement between the two components it connects. If it's not there, or if it's not right, nothing's turning the way it should.

When this key starts to wear out, or if it's been overloaded, you're going to notice some slop in the system. Usually what happens is the keyway itself, or the key, starts to wallow out. You might hear a distinct clunking or knocking sound, especially when the load changes direction or when the system engages. On a pump, you could see inconsistent pressure or even a complete loss of hydraulic function if the key shears completely. It's not always a sudden failure; sometimes it's a gradual increase in vibration or a general feeling of 'looseness' in the drive, which is a big red flag that something's not transmitting power smoothly anymore.

When you're replacing one of these, don't just swap out the key and call it a day. Always, always inspect both the shaft's keyway and the mating component's keyway for any signs of wear, deformation, or damage. If those keyways are chewed up, a new key won't last long, and you're just kicking the can down the road. Make sure the new key fits snugly without having to be hammered in, but also without any noticeable play. And for crying out loud, make sure you've got the right size; a slightly undersized key is just asking for trouble.
