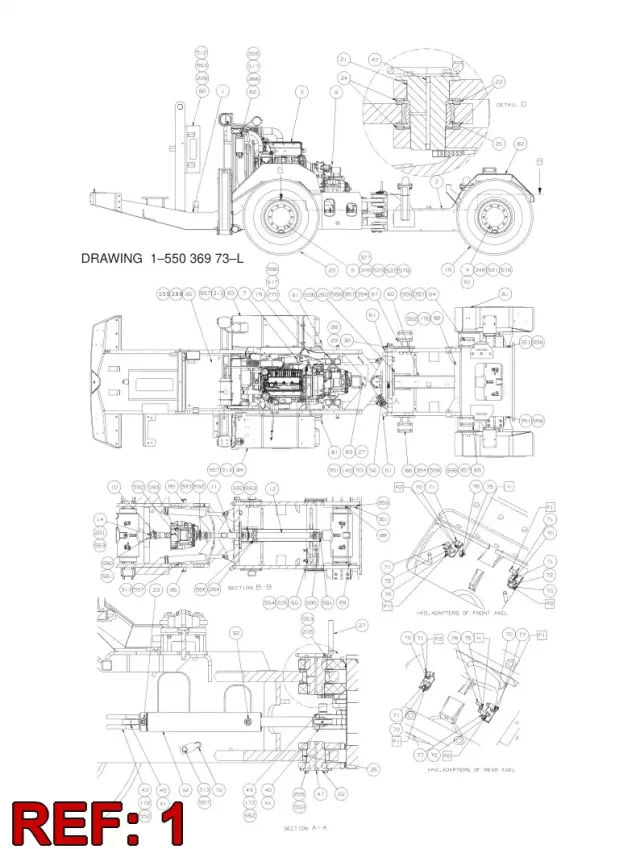

SPIRAL FRAME REAR

325 240 28 SPIRAL FRAME, REAR is the backbone for a good chunk of the rig's heavy iron. Think about it: this thing carries the engine, the main hydraulic tank, often the compressor, and all the associated plumbing and wiring that goes with them. It’s not just a piece of metal; it’s what keeps all those critical power and fluid systems lined up and secure, taking the brunt of the vibrations and twists that happen when you're tramming across rough ground or drilling hard rock. Without it, nothing else sits right.

When this frame starts to give up, you'll usually notice it first as something else acting up. Maybe you're chasing hydraulic leaks that keep coming back because the tank is shifting ever so slightly, or you start seeing unusual wear on drive components if the engine mounts are compromised. The big one, though, is often cracks, especially around high-stress areas like where the engine mounts bolt in or where the main axle attaches. You might hear new creaks or groans from the back end of the machine, or even feel a subtle change in how it tracks. Don't ignore those little signs.

Replacing a SPIRAL FRAME REAR is a massive undertaking, so your best bet is to keep an eye on it. Regular visual inspections are key, especially after any hard knocks or long periods of heavy use. Pay close attention to all the welds, particularly those connecting the main cross members and mounting pads. A common spot folks miss checking are the areas hidden by other components, like under the hydraulic tank or behind the engine, where fatigue cracks can start small and grow unnoticed until they become a real problem. Catching a hairline crack early can save you a world of pain later.
